| Machine type |

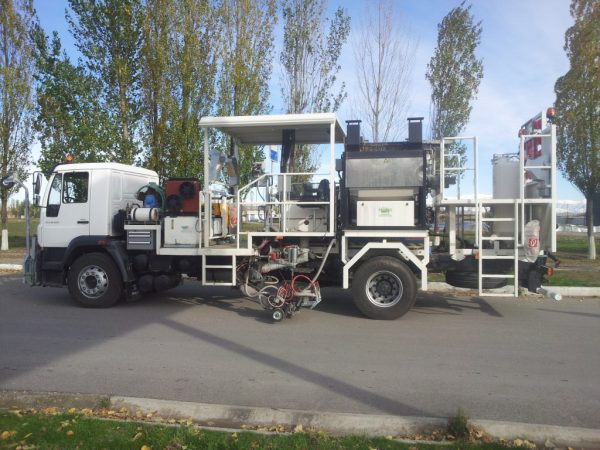

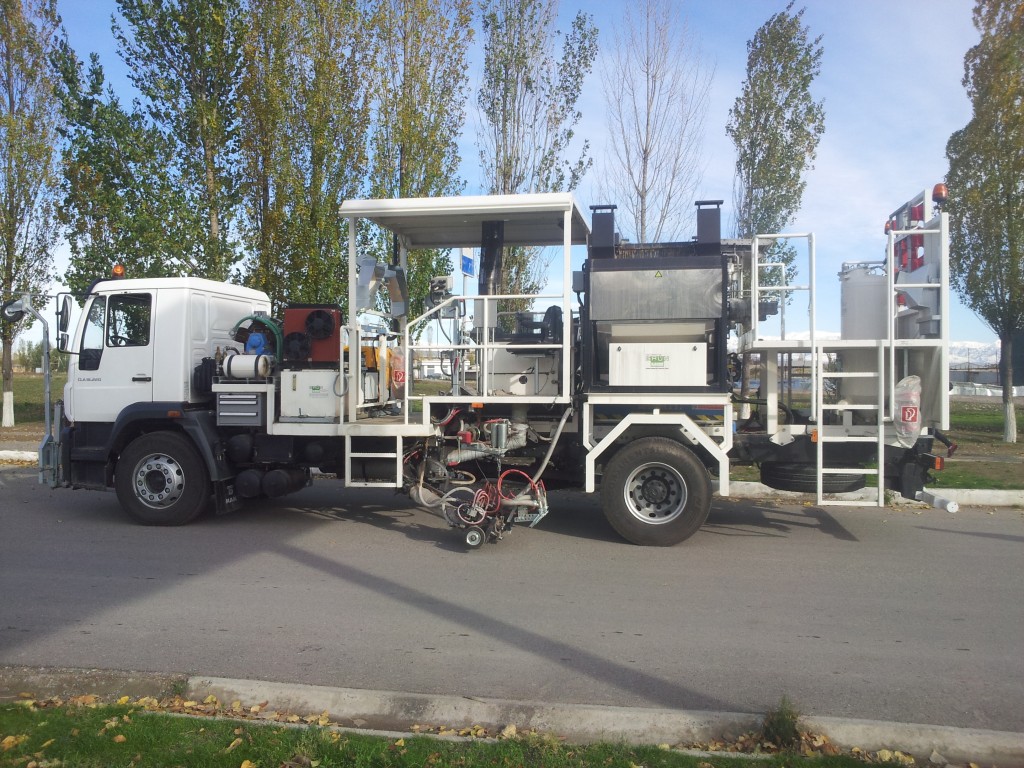

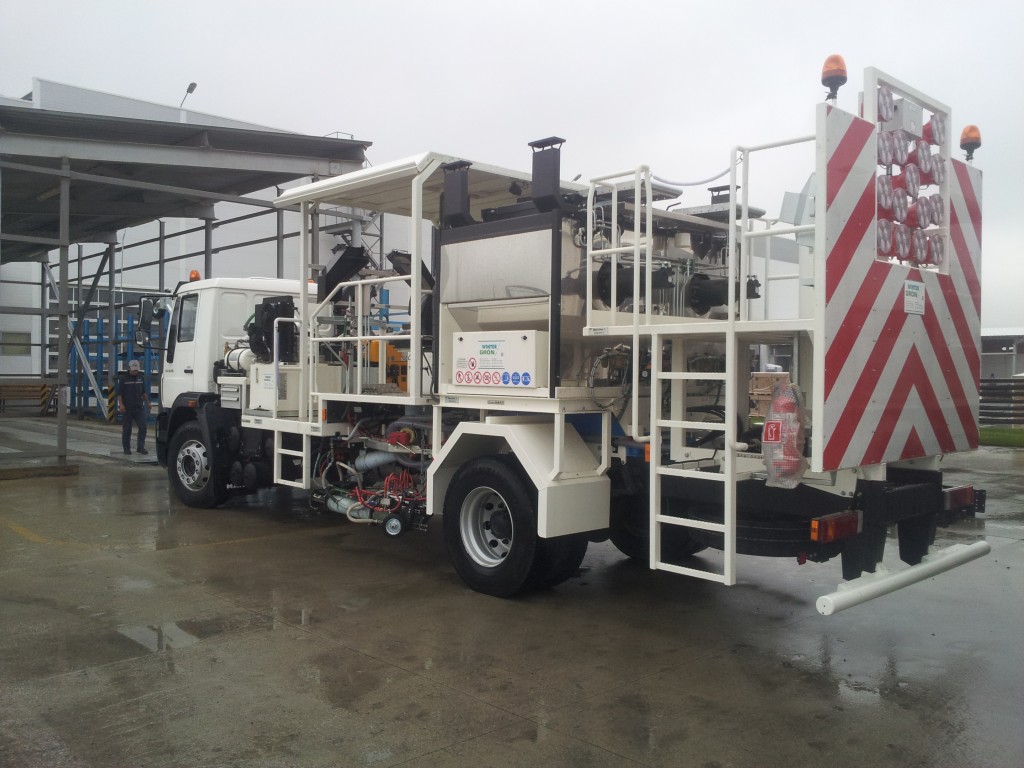

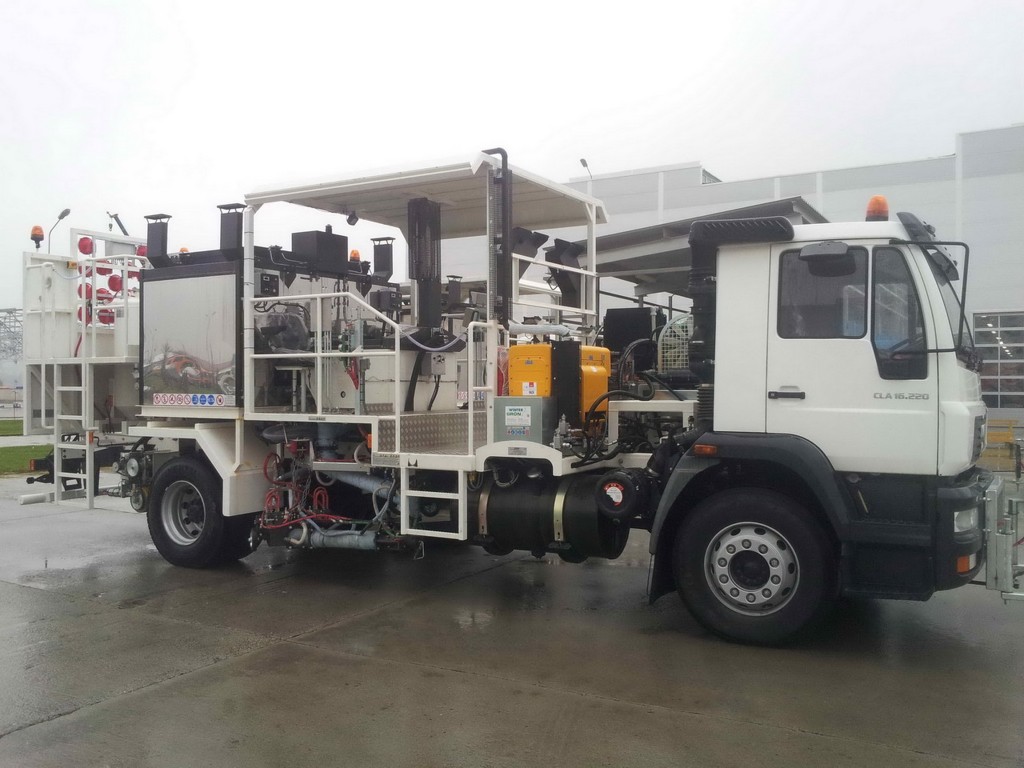

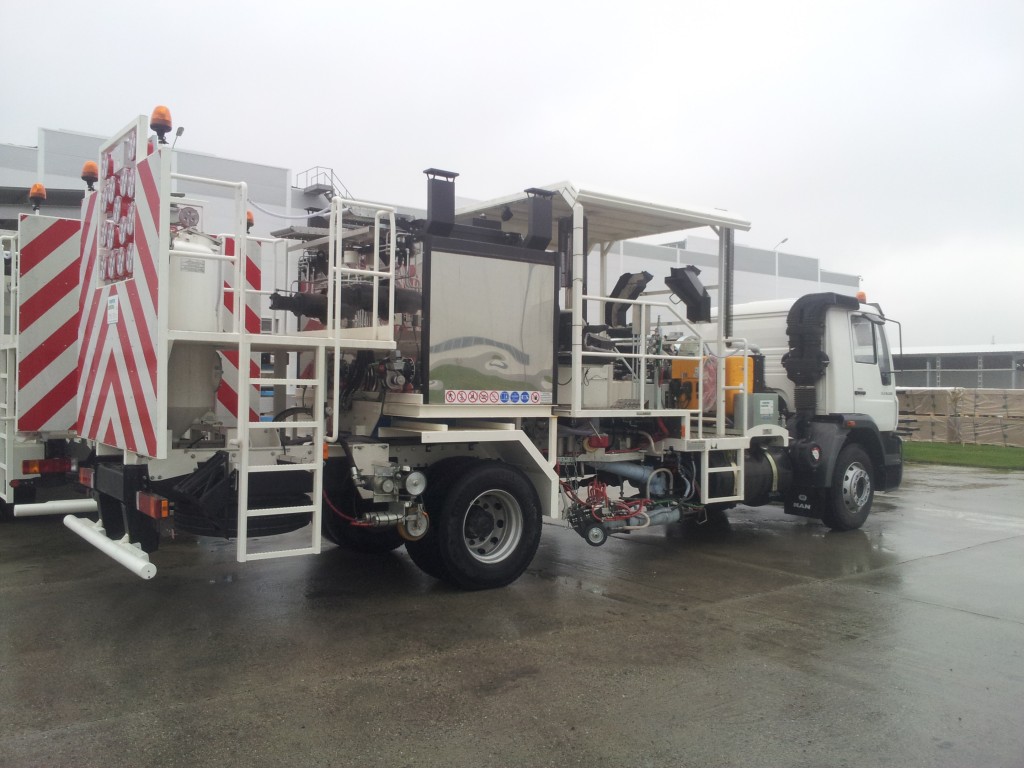

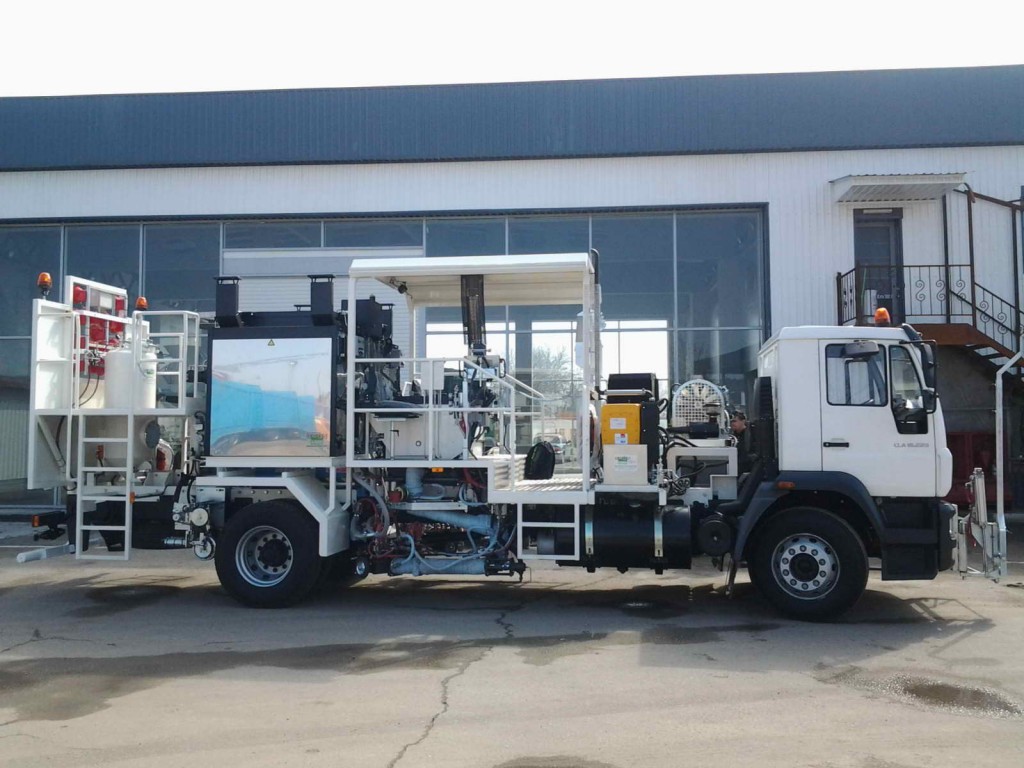

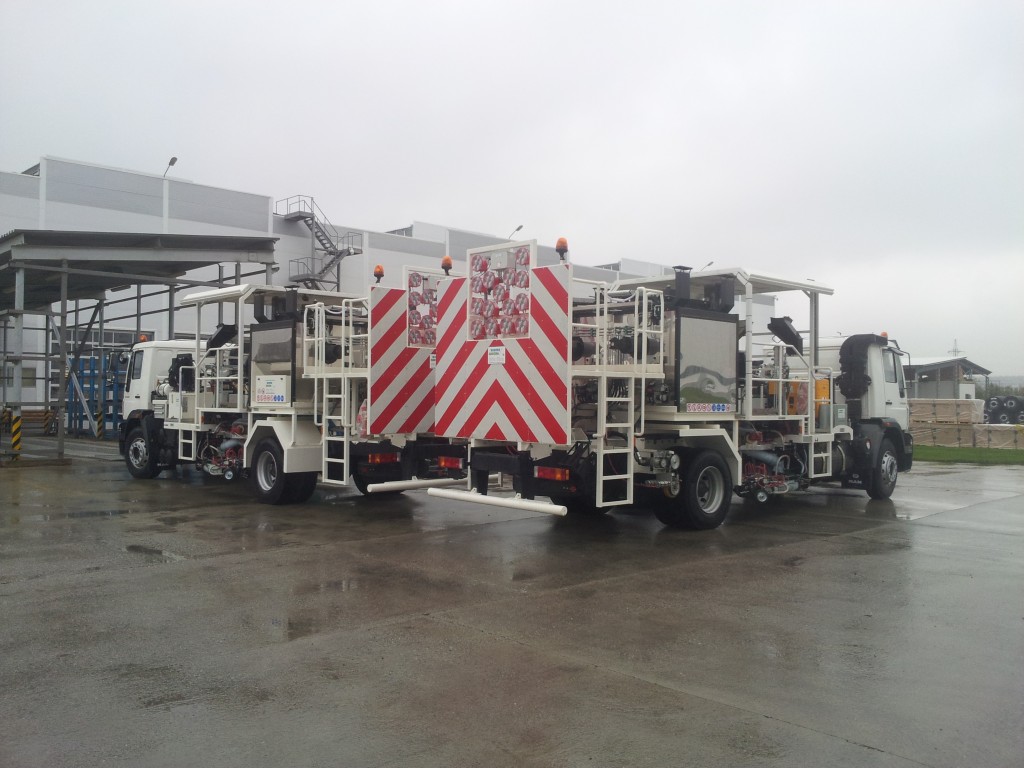

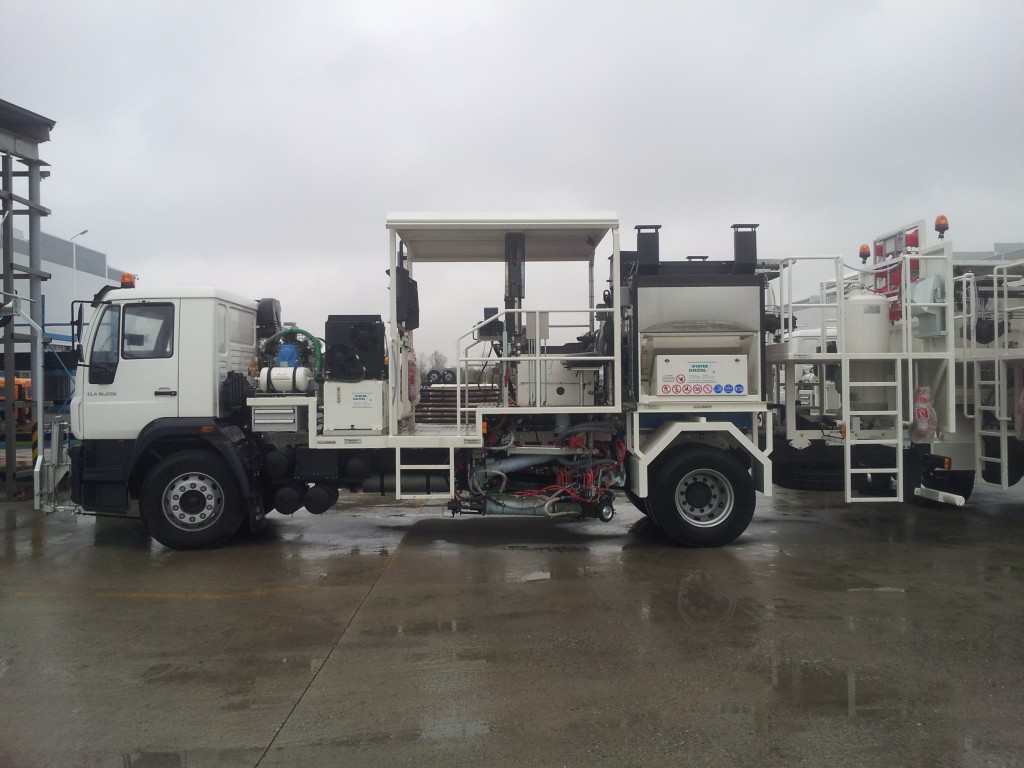

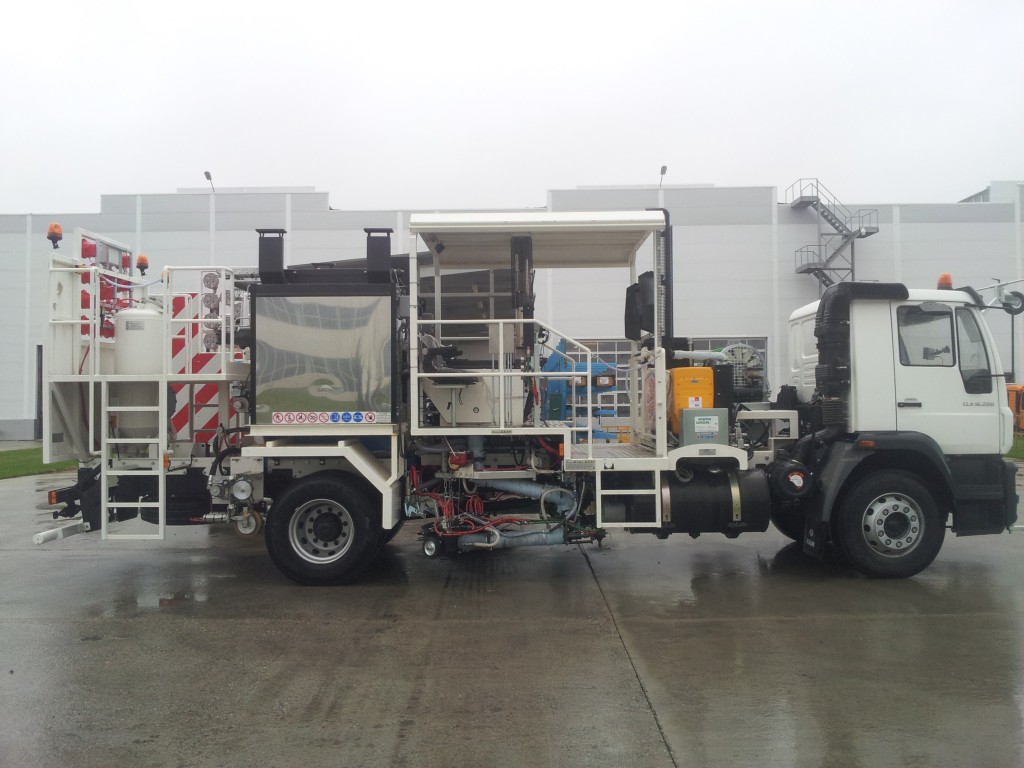

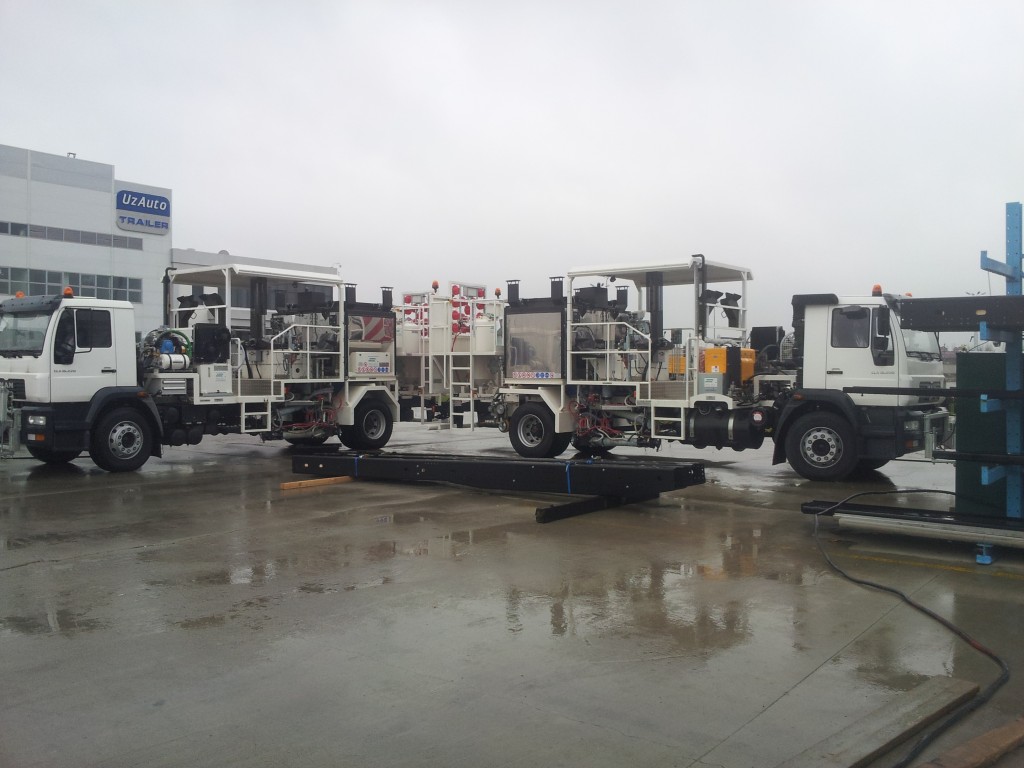

Road marking truck WTE 1500 |
| Truck type |
MAN CLA 16.222 |
| Wheel base |
4300 mm |
| Line guide |
connected to stearing, pneumatic lifting |
| Compressor |
Boge, effective air supply 1,5 m³/min at 7 bar |
| Thermoplastic preheater |
2x 500 ltr., with agitator |
| Thermoplastic container |
450 ltr., with agitator |
| Thermal oil heating |
on request gas or diesel |
| Hydraulic power station |
Hatz 3L41C, supersilent |
| Glass bead pressure tank |
300 ltr., upright mounted |
| Extruder |
right and left hand side, automatic thickness control |
| Extruder heads |
on request, also multi flap extruder heads |
| Operators section |
right and left, near outrigger, panel with all necessary instruments |
| Outrigger / marker units |
right and left hand side, mechanically foldable pneumatic lifting |
| Glass bead equipment |
on request |
| Empty- / total weight |
approx. 12000 kg / 16000 kg |
| Dimensions Length x width x height |
approx. 9,20 m x 2,50 m x 3,50 m |
Technical modifications and errors excepted,
illustrations similar resp. partly including special accessories.
|
State of art: 14.03.2016_en
|
