Description
|
Machine type |

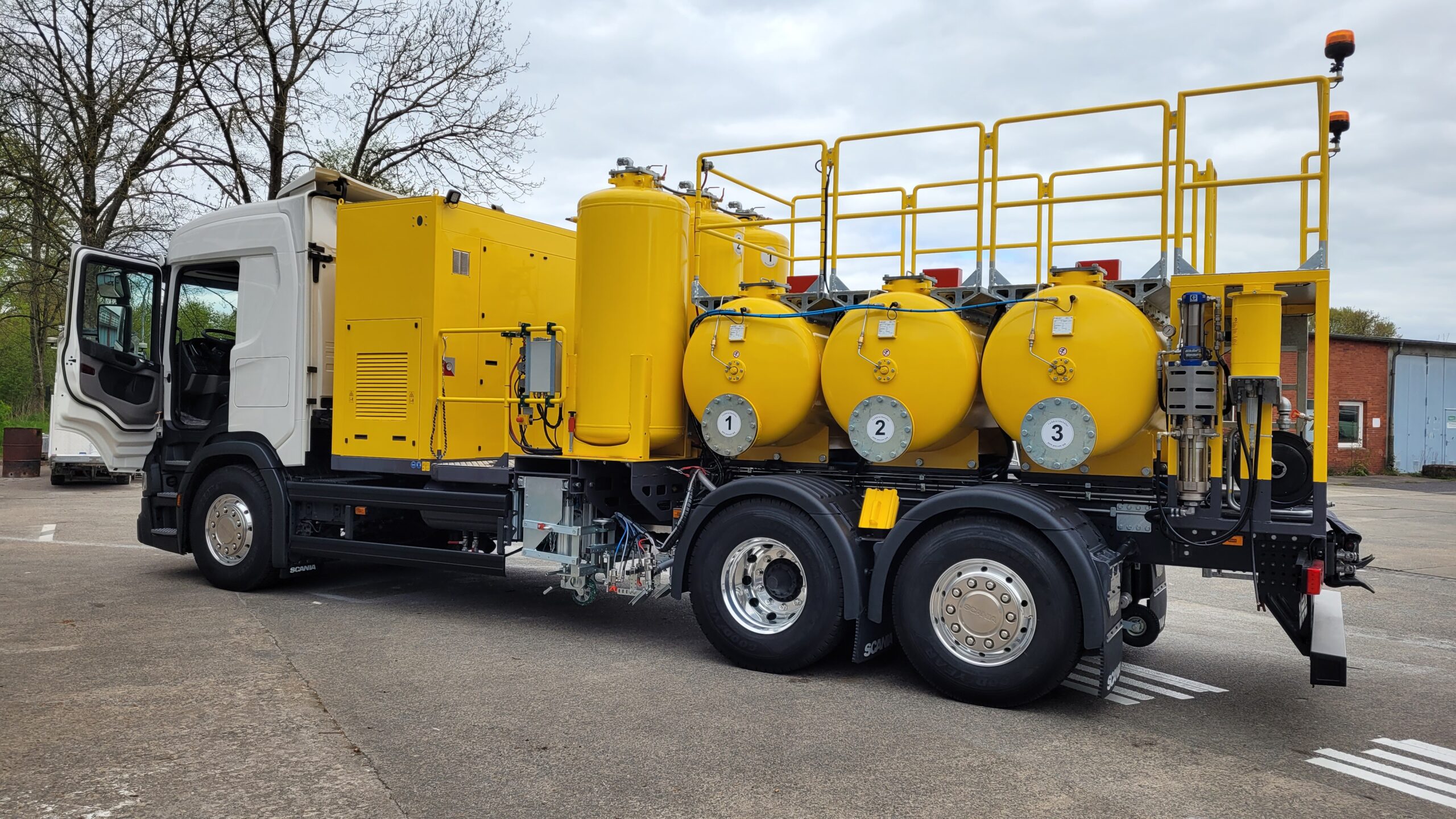

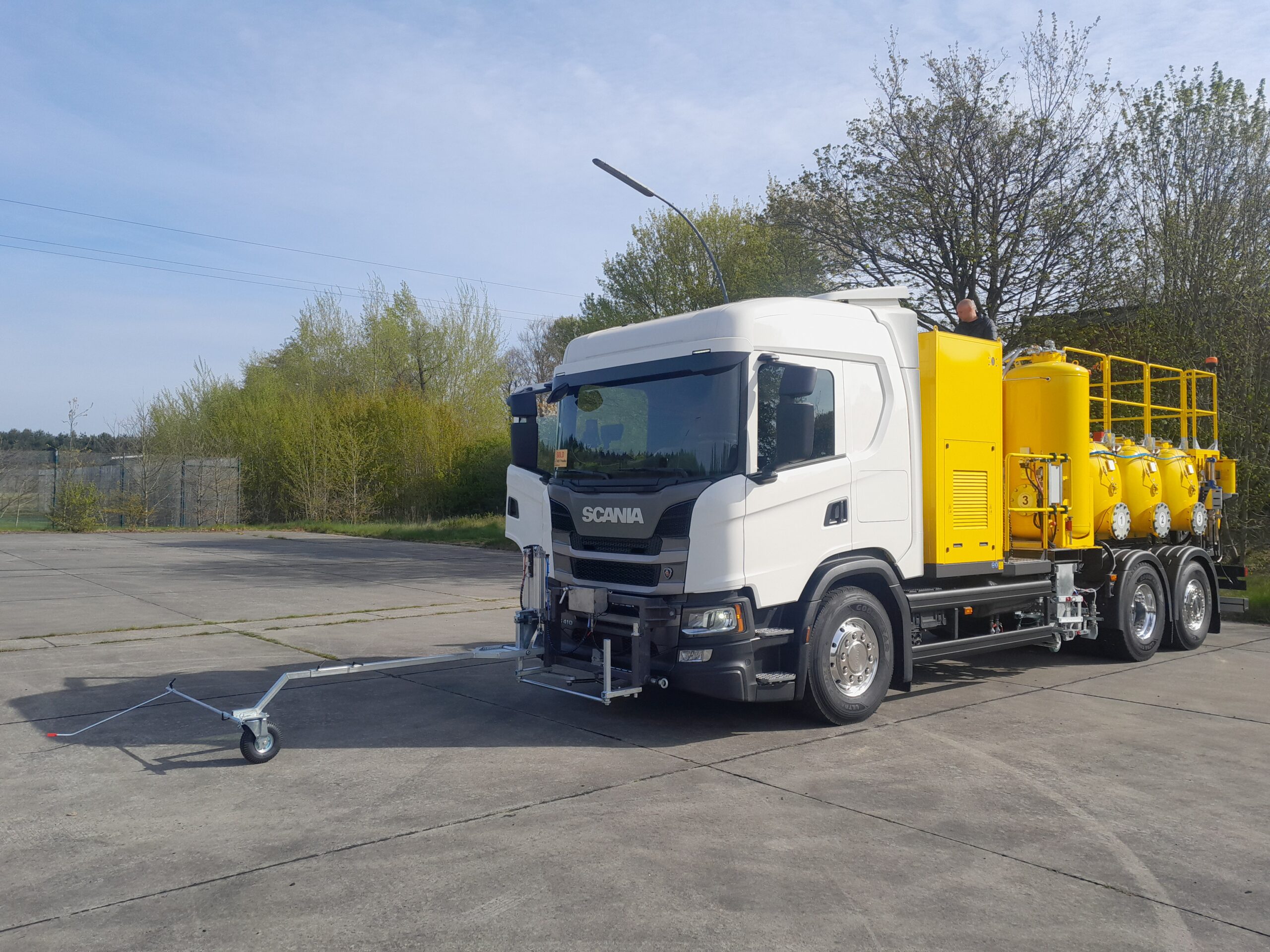

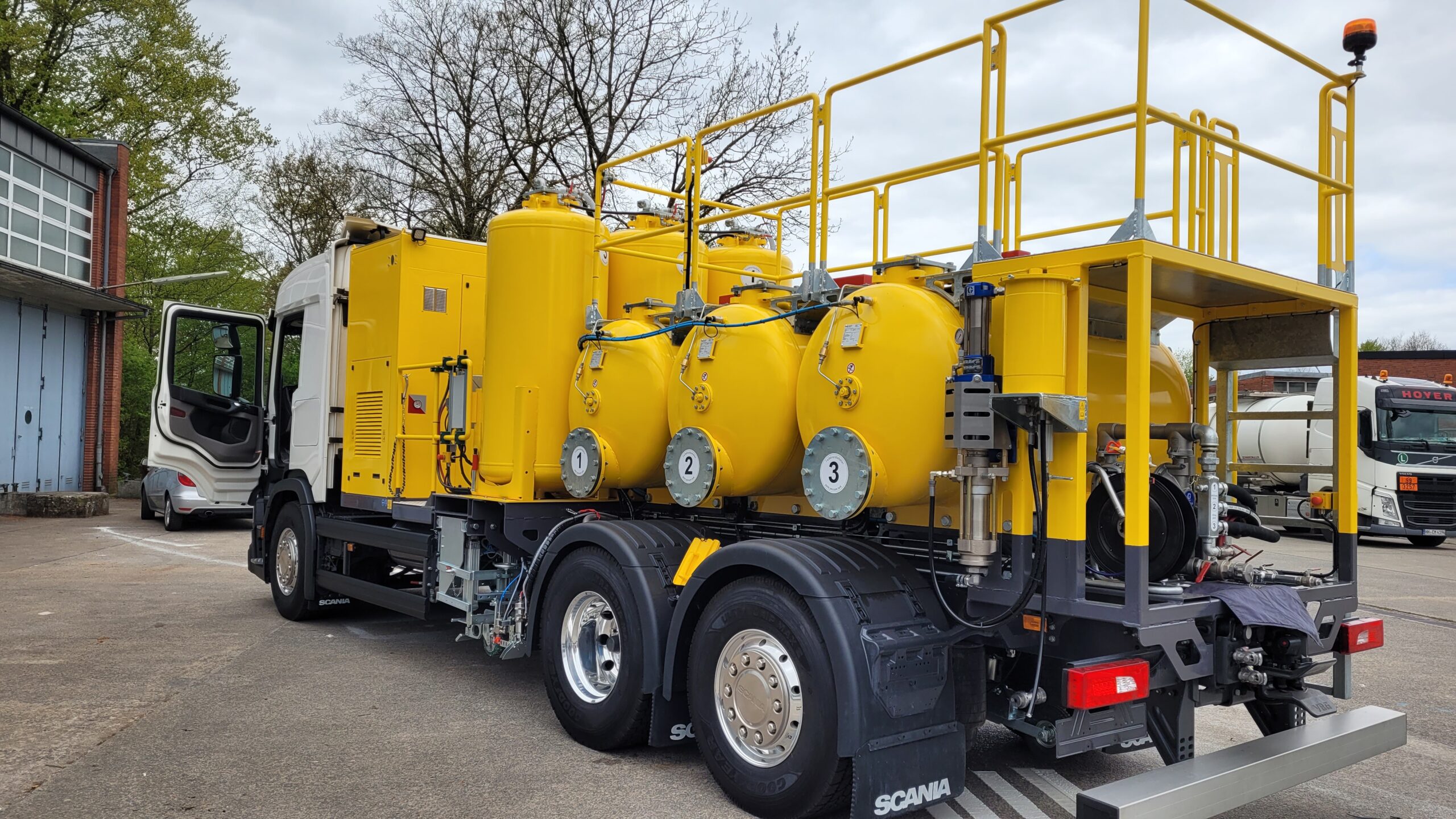

1K Airless Marking System WP 4500 |
|
Truck type |
Scania G410 B6X2*4NB |
|
Line guide |
Foldable flip-up visor, pneumatically liftable |
|
Compressor |
Screw compressor, output approx. 1,900 L/min / 7 bar |
|
Ink pressure container |
3x approx. 1,500 liters with hydraulically driven agitator |
|
Perdrückbehälter |
3x approx. 850 liters |
|
Spülmitteldruckbehälter |
approx. 100 liters |
|
Paint pump |
Airless pump type Graco, delivery rate approx. 15 l/min |
|
Operators section |
Marker units on the right and left, hydraulically operated booms, with pneumatically liftable gun holder, operation from the driver's cab |
|
Outrigger / marker units |
7 bar, silenced safety valve |
|
Paint spray guns |
on request |
|
Glass bead equipment |
on request |
|
Additional equipment |
Hand spray gun, dust blower, hydraulic sweeping brush, filling device for paint and beads, light arrow, additional accessories available on request |
|
Empty weight |
Approximately 16,460 kg (varies depending on equipment) |
|
Dimensions, LxWxH (without equipment) |
Approx. 9.58 m x 2.55 m x 3.52 m (varies depending on equipment) |
Technical changes and errors excepted
Specifications refer to standard equipment, modifications on request
illustrations similar resp. partly including special accessories.
