| Machine type |

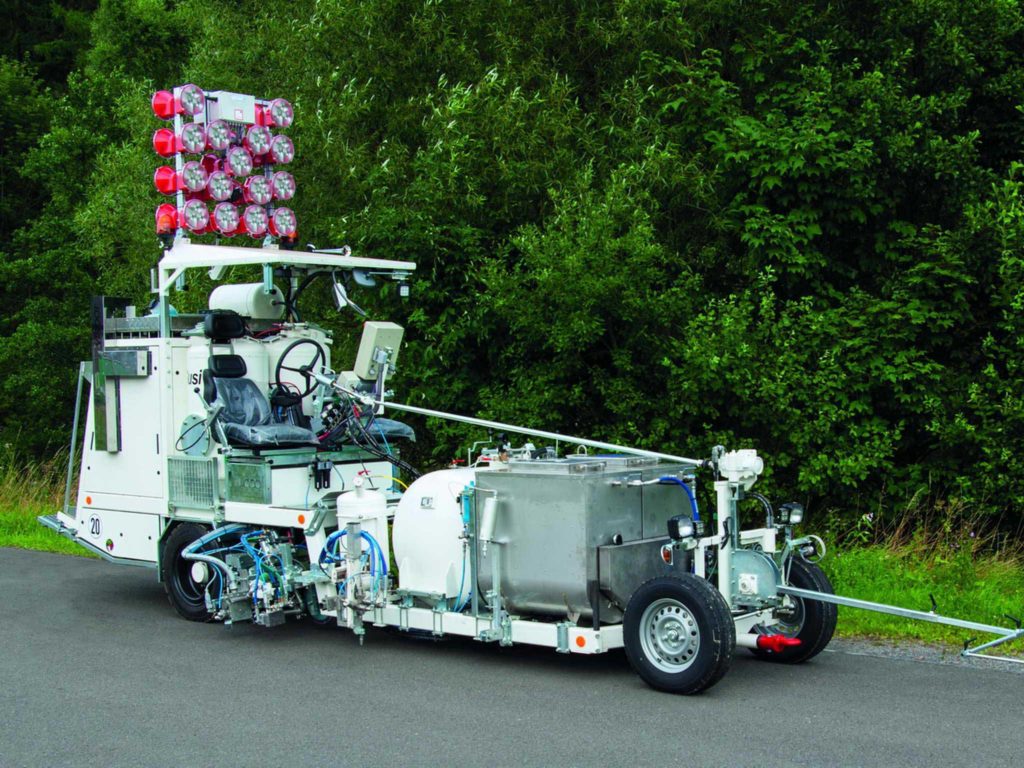

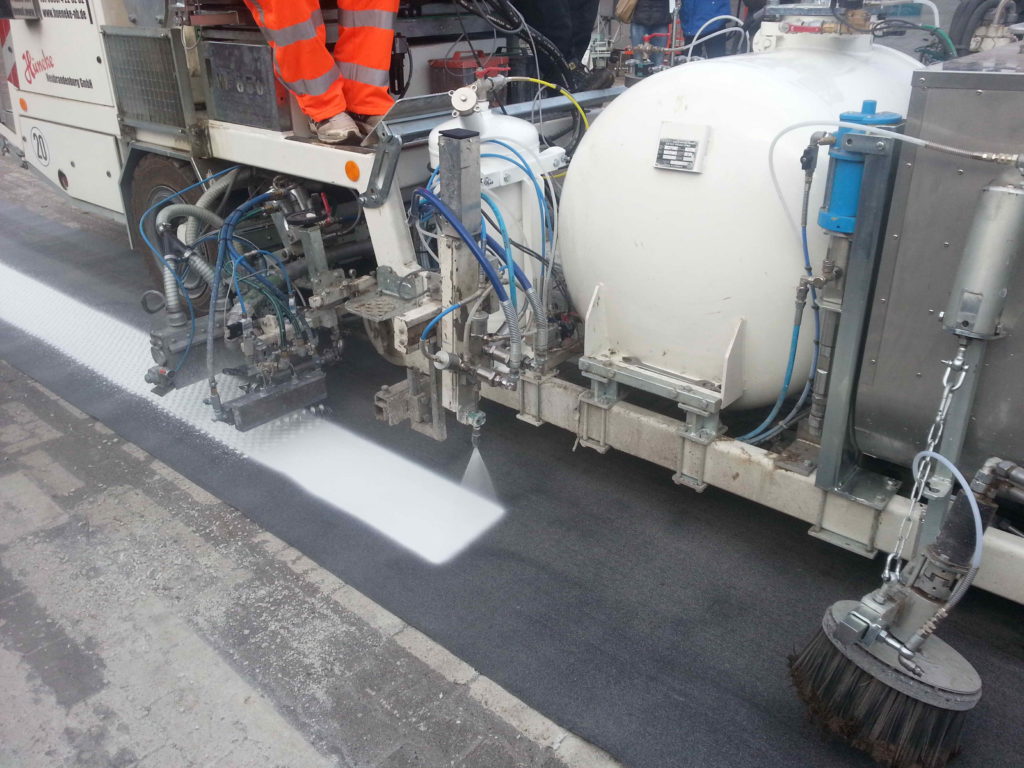

Road marking machine WKPKSP 850 |
| Engine |
Kubota V3307, 3331 ccm, 70 HP (51 kW), at 2000 r/min |
| Fuel |
diesel, capacity 100 liter |
| Electrical system |
12 V, battery 100 Ah12 V, battery 100 Ah |
| Steering |
strong standard mechanical steering, on request hydraulic assisted steering / hydraulic |
| Drive / brake system |
hydrostatic drive, also acting as service brake, parking brake hydraulically controlled multi disc brake, on request 2-stage-drive |
| Wheels |
front: 185 R 14 – 5-hole-rim / rear: 215 R 14 – 6-hole-rim |
| Compressor |
screw type compressor, hydraulically driven, driving speed adjustable, air supply 600 up to1850 l/min |
| Operating air pressure |
7 bar self-adjusting, safety valve 8,5 bar |
| Paint pressure tank |
840 ltr., with hydraulically driven agitator, other container capacities on request |
| Mixing-system |
98 : 2, fluid hardener pump with static mixer |
| Paint container unpressurized |
2x 200 ltr., with agitator, other container capacities on request |
| Paint pump |
Airless doublepump, 22 ltr/min, mixture ratio 1 : 1 |
| Glass bead pressure tank |
2x 230 ltr., with water pre separator, on request filling sieve / filling level monitor |

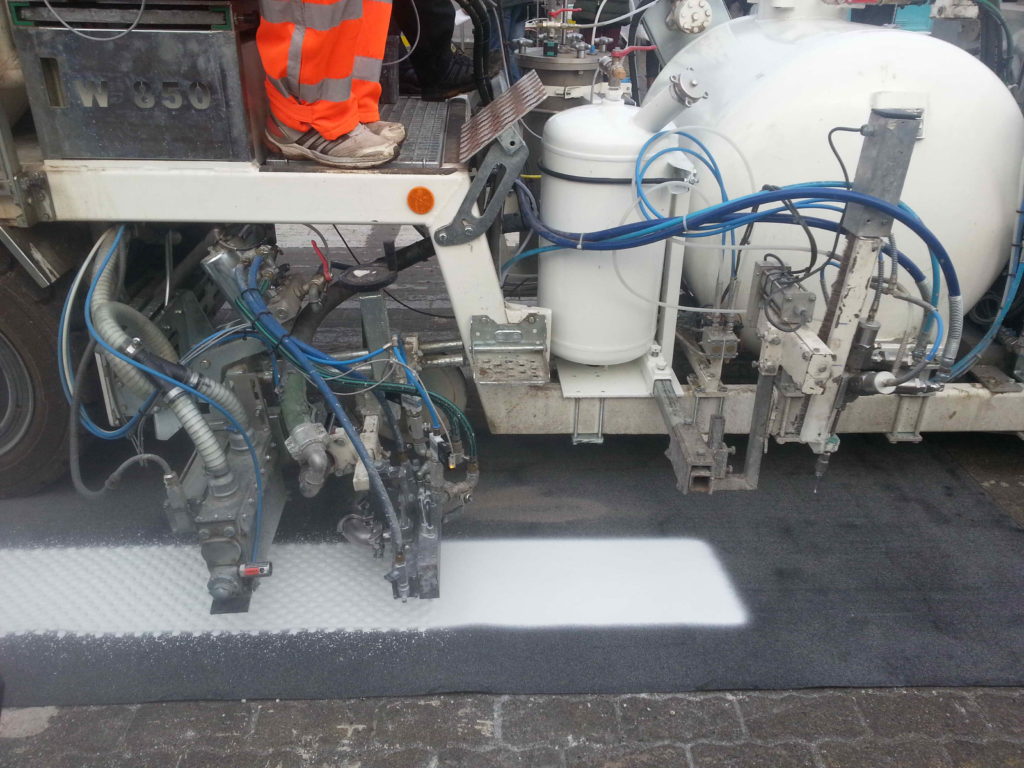

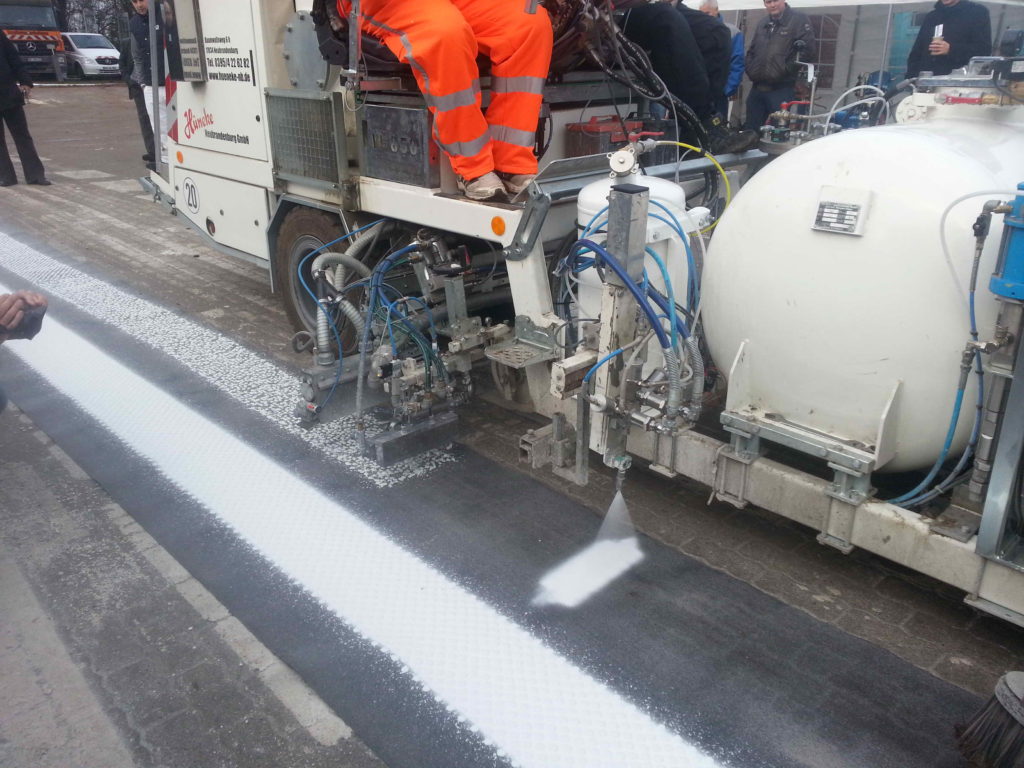

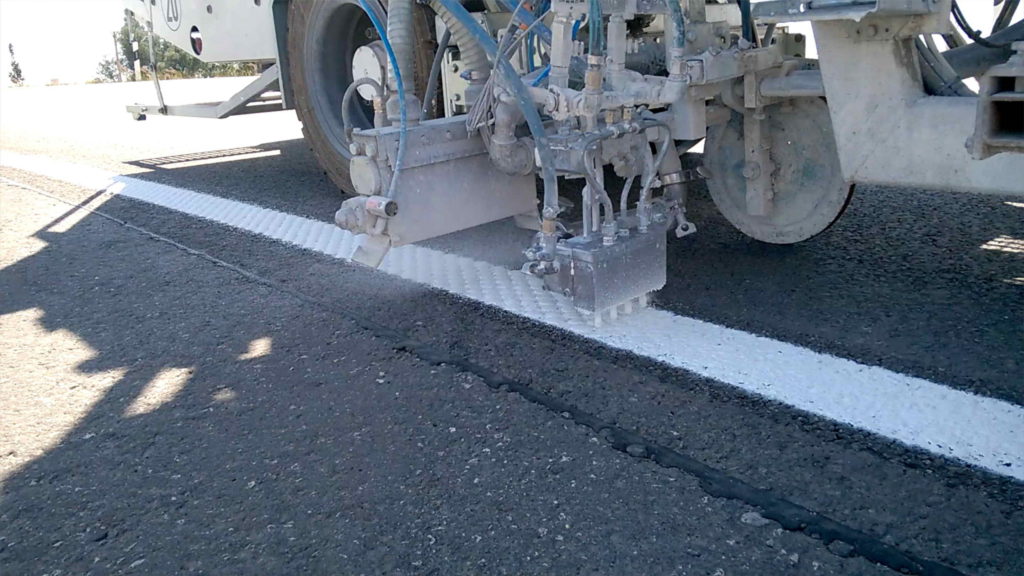

| Marker unit |
on request, Visi-Dot / Visi-Struct / screed box / profile |
| Additional equipment |

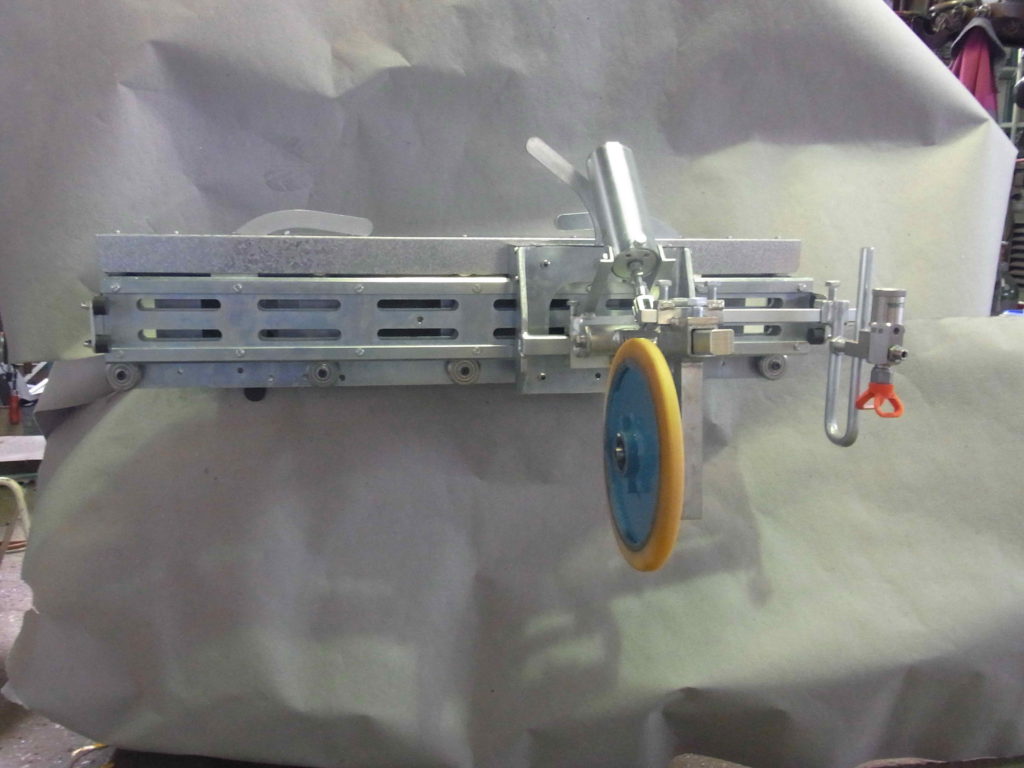

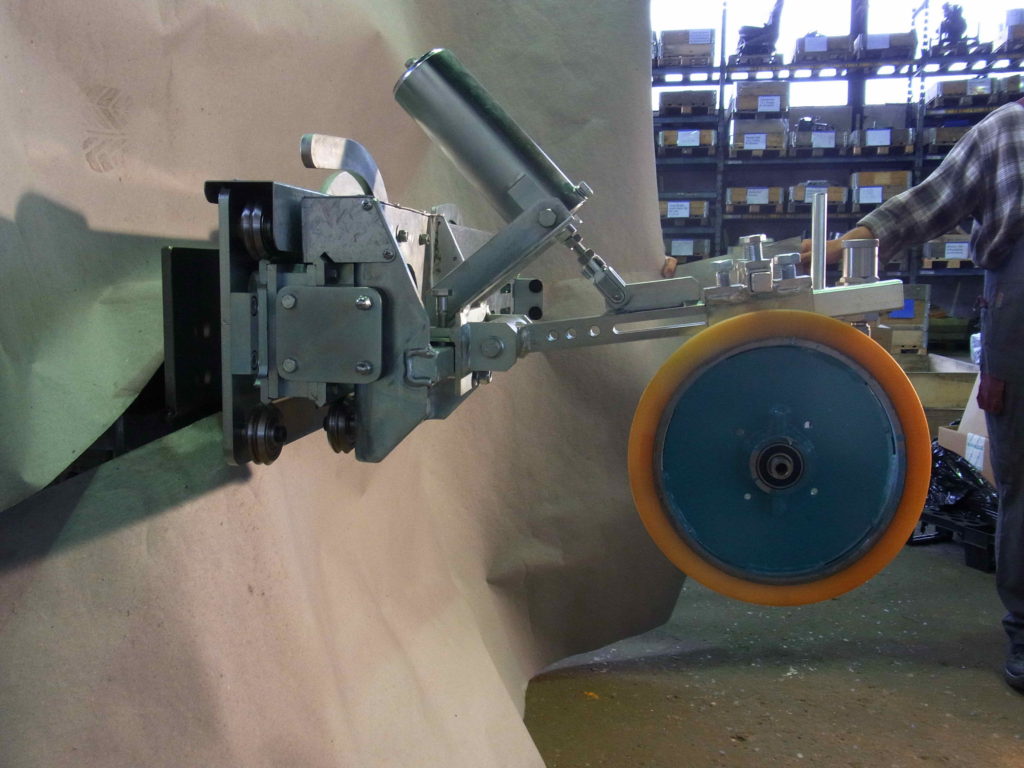

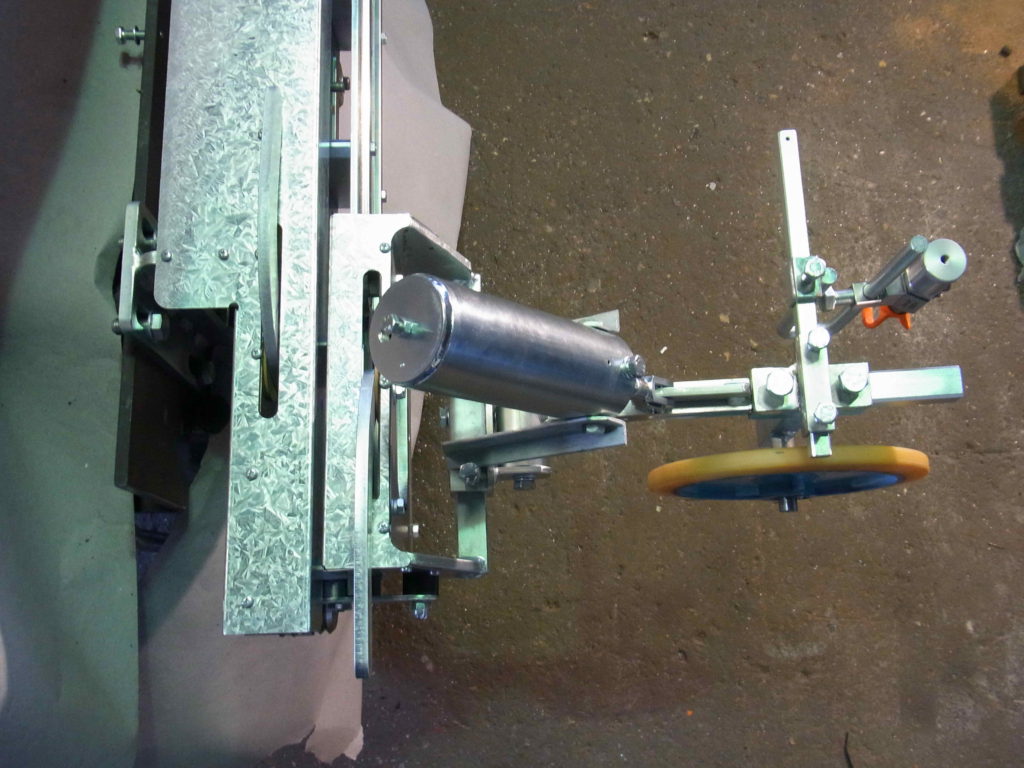

on request, hydraulic lifted line guide |
| Glass bead equipment |
on request, metering bead dispenser up to 300 mm |
| Empty- / total weight |
approx. 3500 kg / 5500 kg |
| Dimensions Length x width x height |
approx. 5,50 m x 1,20 m x 2,60 m (without equipment) |
Technical modifications and errors excepted,
illustrations similar resp. partly including special accessories.
|
Stand: 08.10.2016_de
|
