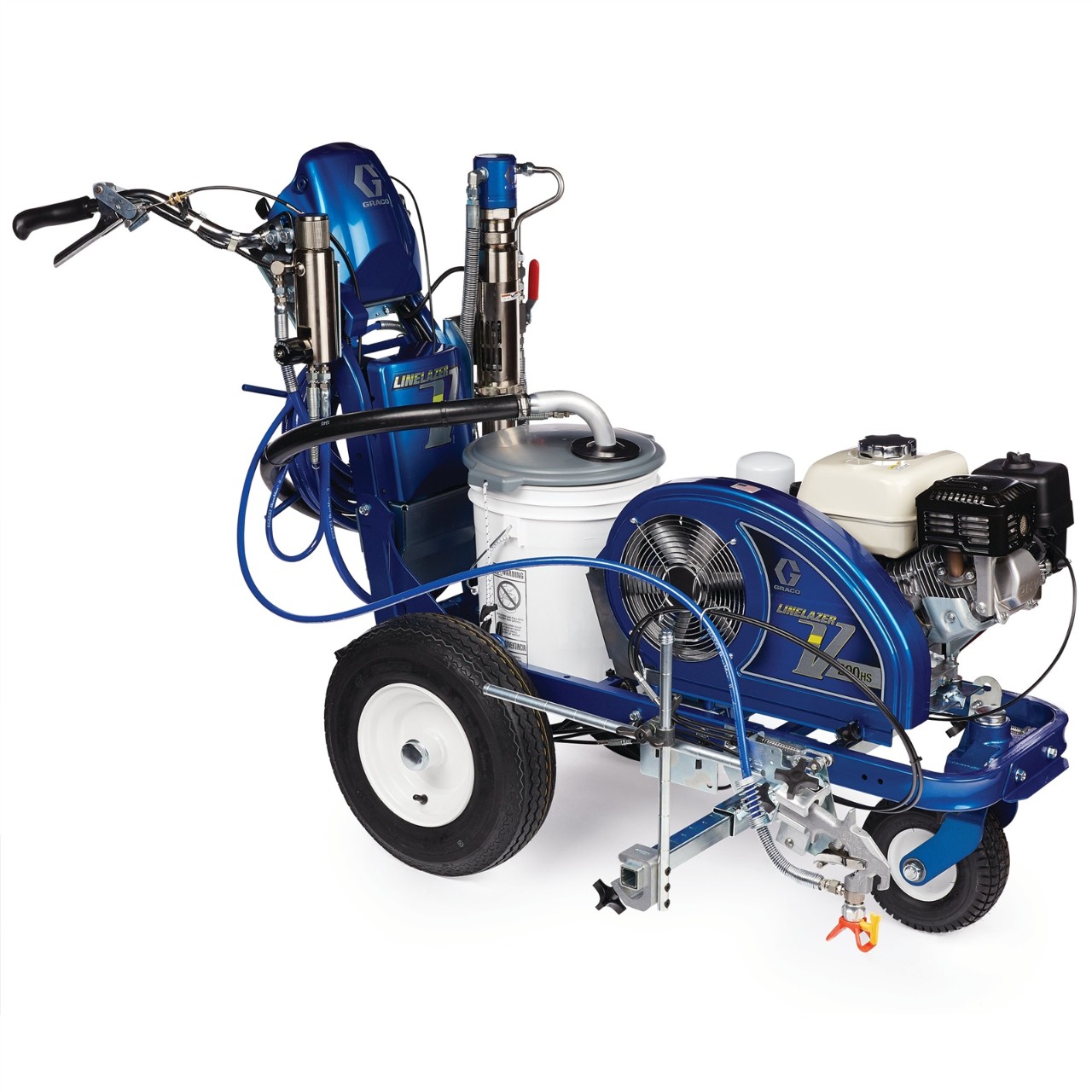

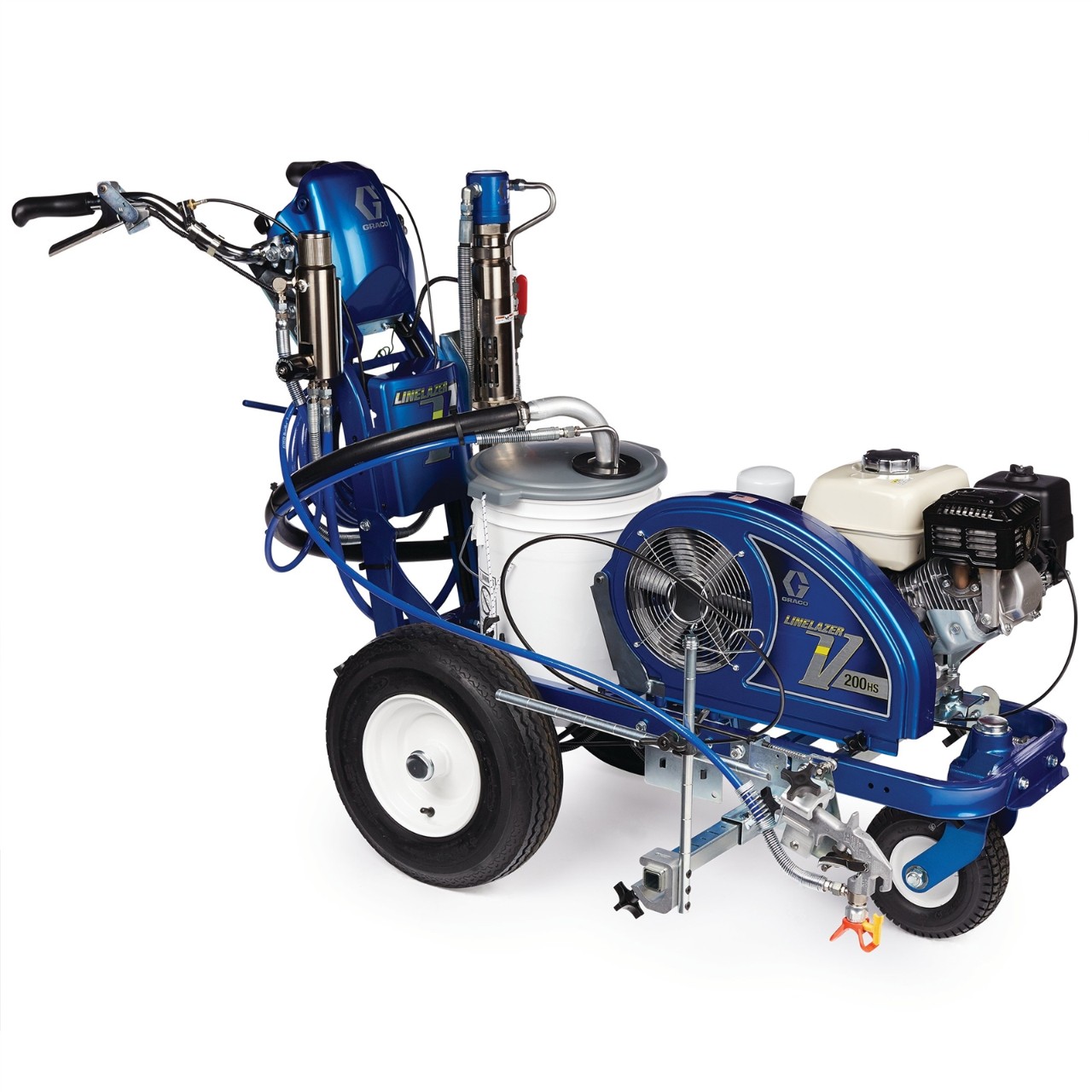

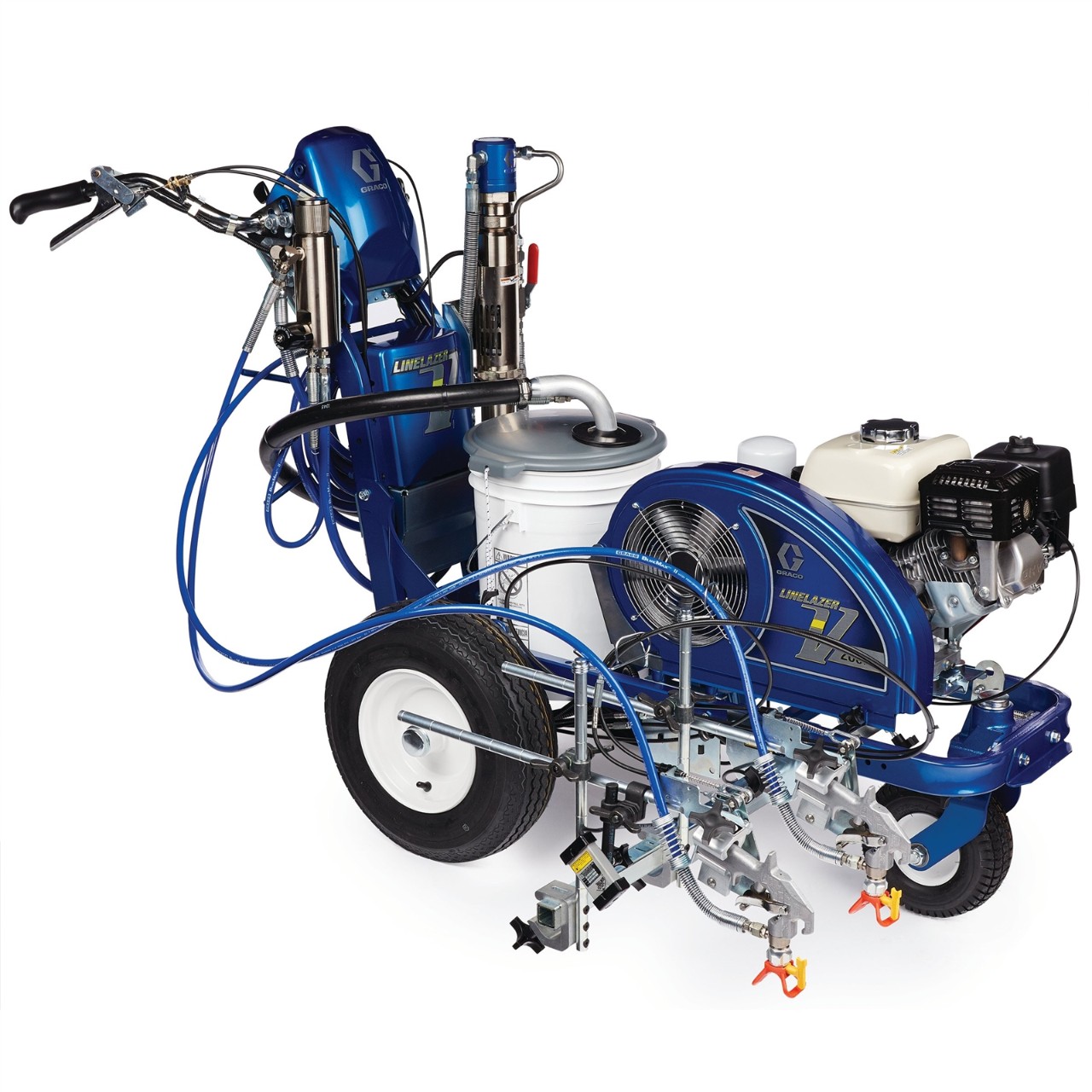

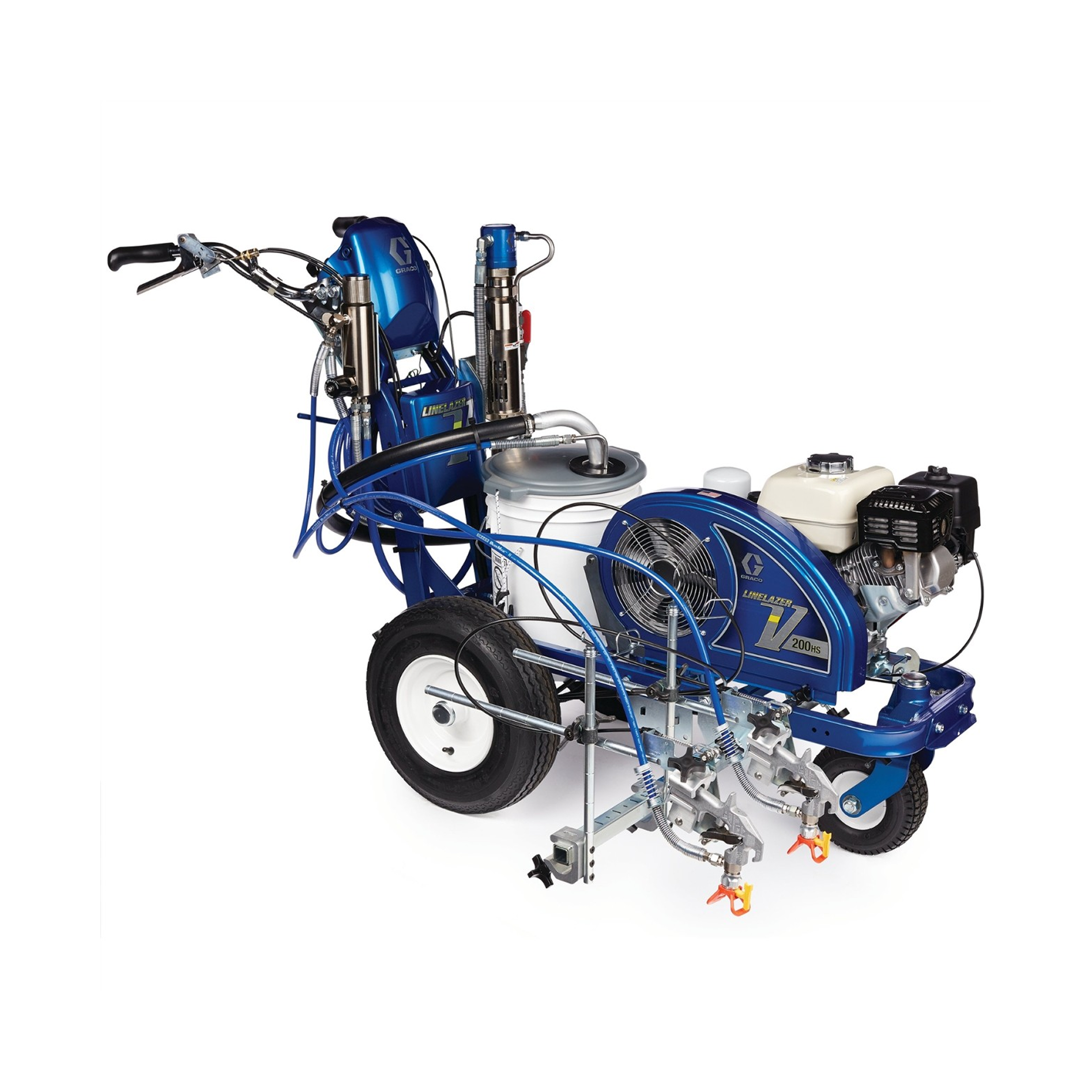

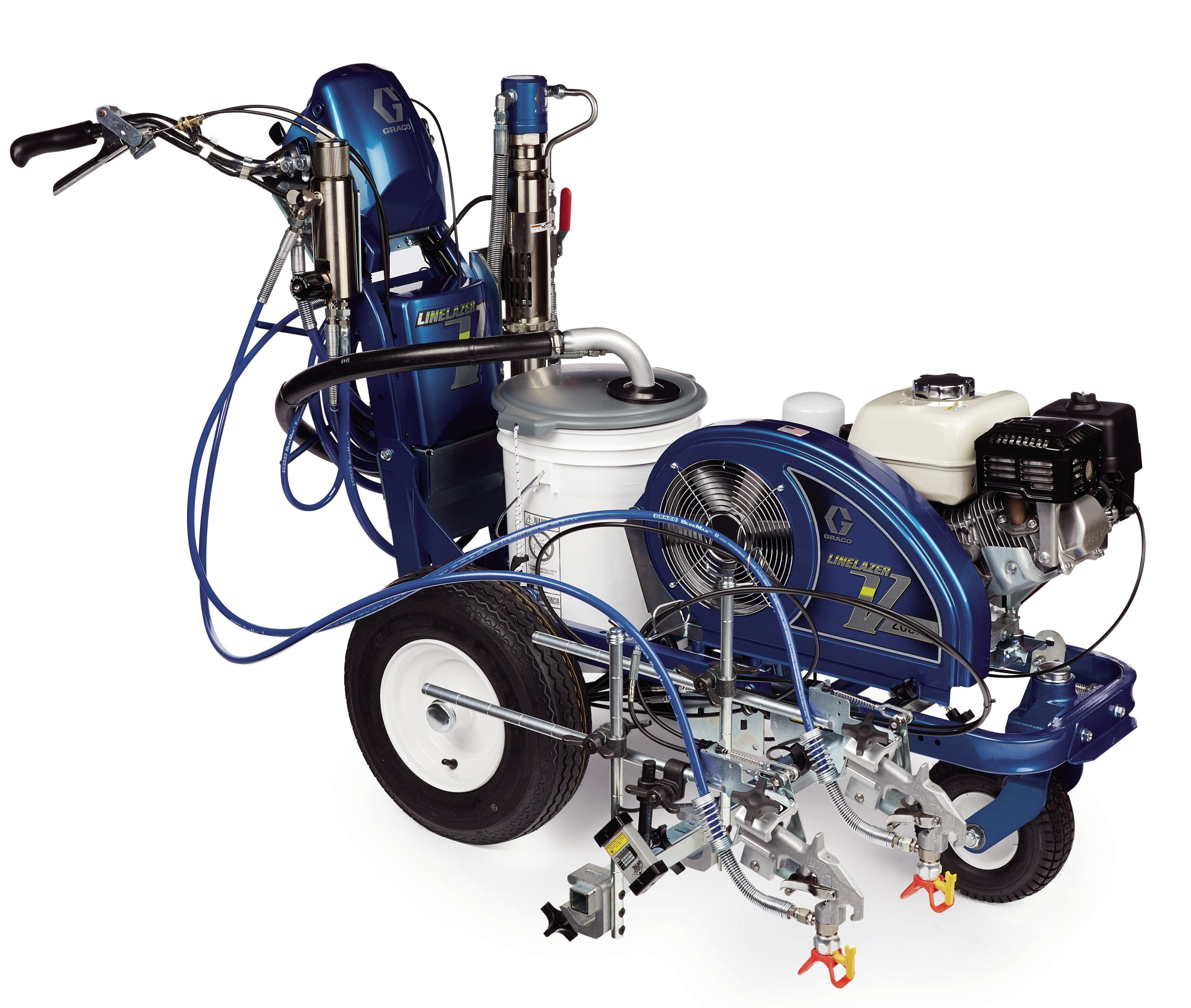

LineLazer 200 HS

Small marking machine with highly efficient, hydraulic pump drive for spraying airless solvent- and water-based marking paints

Description

With its high production features, the LineLazer V 200HS is a true workhorse designed for high performance marking on the most demanding jobs such as large parking lots, airports and urban jobs that require precise lines.

Automatic paint gun system

  • Automatic marking of broken lines
  • Reduced operator fatigue - production at the touch of a button
  • High-quality magnet-controlled system



Auto-Layout II

  • Simplify the layout of parking spaces
  • SmartControl measures while you walk and set markers
  • No need for measuring tape, guide cords or spray cans
  • Reduces the time required for layout by half



LiveLook display with SmartControl

  • Information on line marking at a glance
  • Track, measure and control every aspect of your job
  • Accessible order verification data from the J-Log system with USB download
  • Even spray pressure for perfect lines



J-Log system with USB download

  • Valuable order information
  • Proof of work = more possibilities for line marking.
  • With the USB download capability, all order data can be recorded and saved



Honda® GX Motor

  • Reliable, trouble-free start of the power
  • Favoured by users: outstanding performance and proven reliability
  • The oil warning device switches off the engine to prevent damage if the oil level gets too low



EasyMark gun adjustment system

  • Simple gun settings
  • Perfect gun alignment at all times thanks to user-friendly auxiliary marking system
  • 2-gun capability thanks to QuicSelect gun selector switch



EZ Align wheel system

  • Perfect tracking of the marking device
  • Simple front wheel alignment, no special tools required



DualComfort handle bar system

  • Simple adjustment of the handle bar

Technical specifications - Standard

Total width (cm) 87.0
Total height (cm) 113.03
Total length (cm) 174.63
Weight (kg) 139
Fuel tank capacity (L) 3.6
Maximum nozzle size (inch) 0.033
Maximum delivery rate (L/min) 8,14
Motor model GX200
Rated power (kW) 4.85
Gun activation Manual
Number of guns 1 or 2
Product series Standard
Includes Flex Plus gun, LineLazer RAC 5 317 spray nozzle, LineLazer RAC 5 319 spray nozzle, RAC 5 nozzle guard, TSL
Supply voltage Petrol-powered, hydraulic
Permissible operating pressure (bar) 227

Technische Spezifikationen – Automatic

Total width (cm) 87.0
Total height (cm) 113.03
Total length (cm) 174.63
Weight (kg) 146
Fuel tank capacity (L) 3.6
Maximum nozzle size (inch) 0.033
Maximum delivery rate (L/min) 8,14
Rated power (kW) 4.85
Gun activation Automatic
Number of guns 1 or 2
Product series HP Automatic
Includes Flex Plus gun, LineLazer RAC 5 317 spray nozzle, LineLazer RAC 5 319 spray nozzle, RAC 5 nozzle guard, TSL
Supply voltage Petrol-powered, hydraulic
Permissible operating pressure (bar) 227

Videos

You are currently viewing a placeholder content from Default. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.

More Information

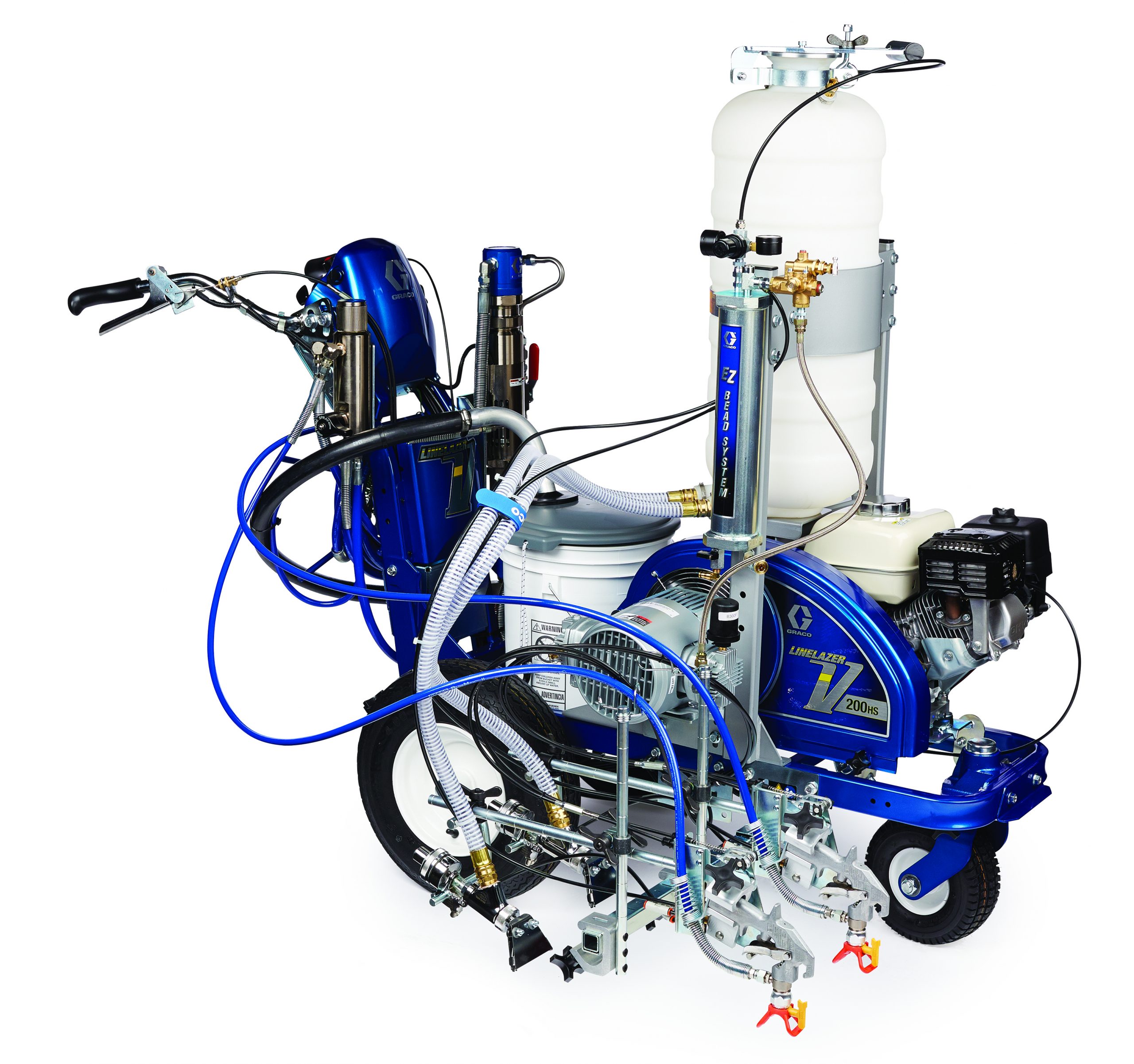

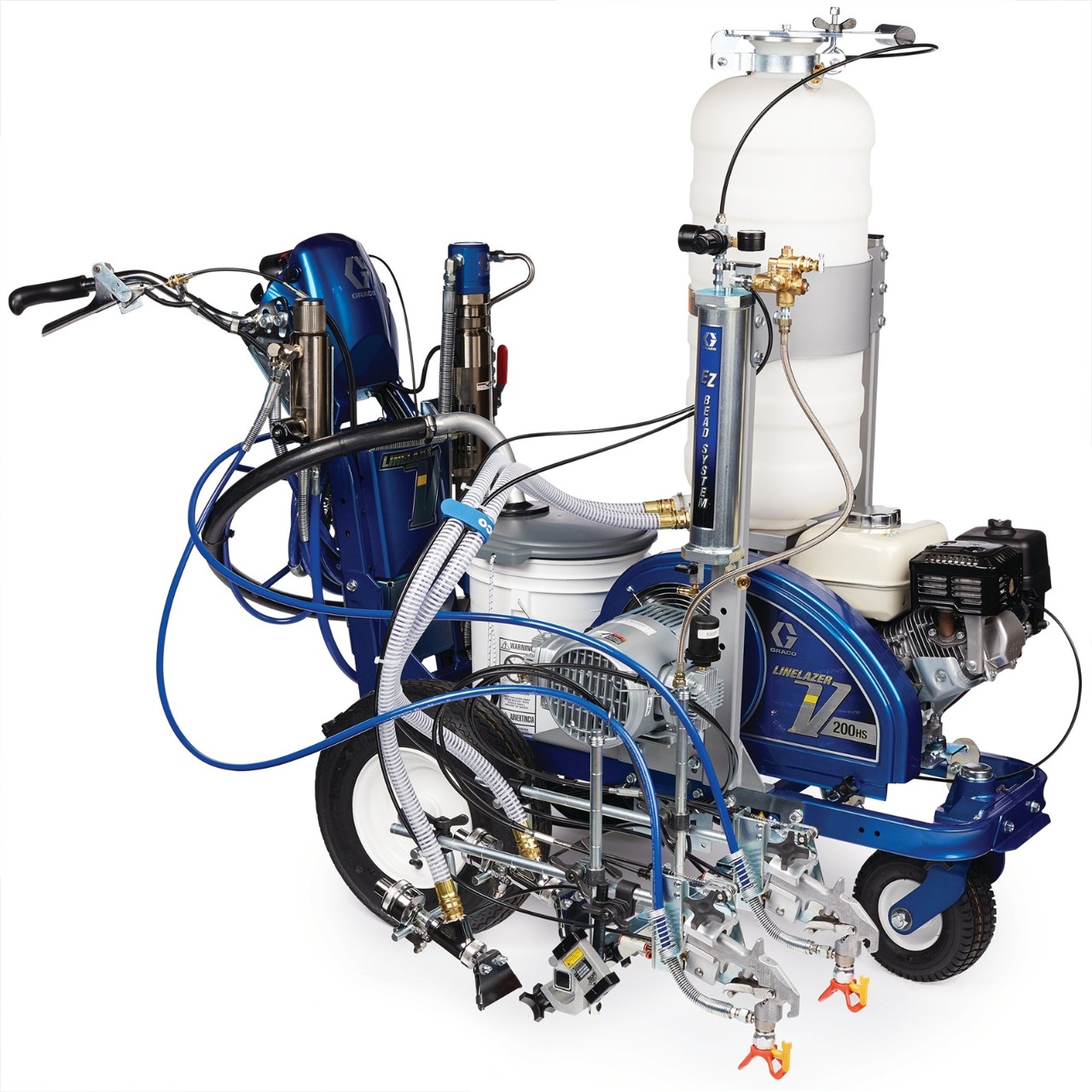

LineLazer V 200HS HP Reflective Serie

Number of colors Unicolored
Number of pumps 1
Total width (cm) 87.0
Gesamtbreite (mm) 870
Total height (cm) 113.03
Gesamthöhe (mm) 1130.3
Total length (cm) 174.63
Gesamtlänge (mm) 1746.25
Weight (kg) 189
