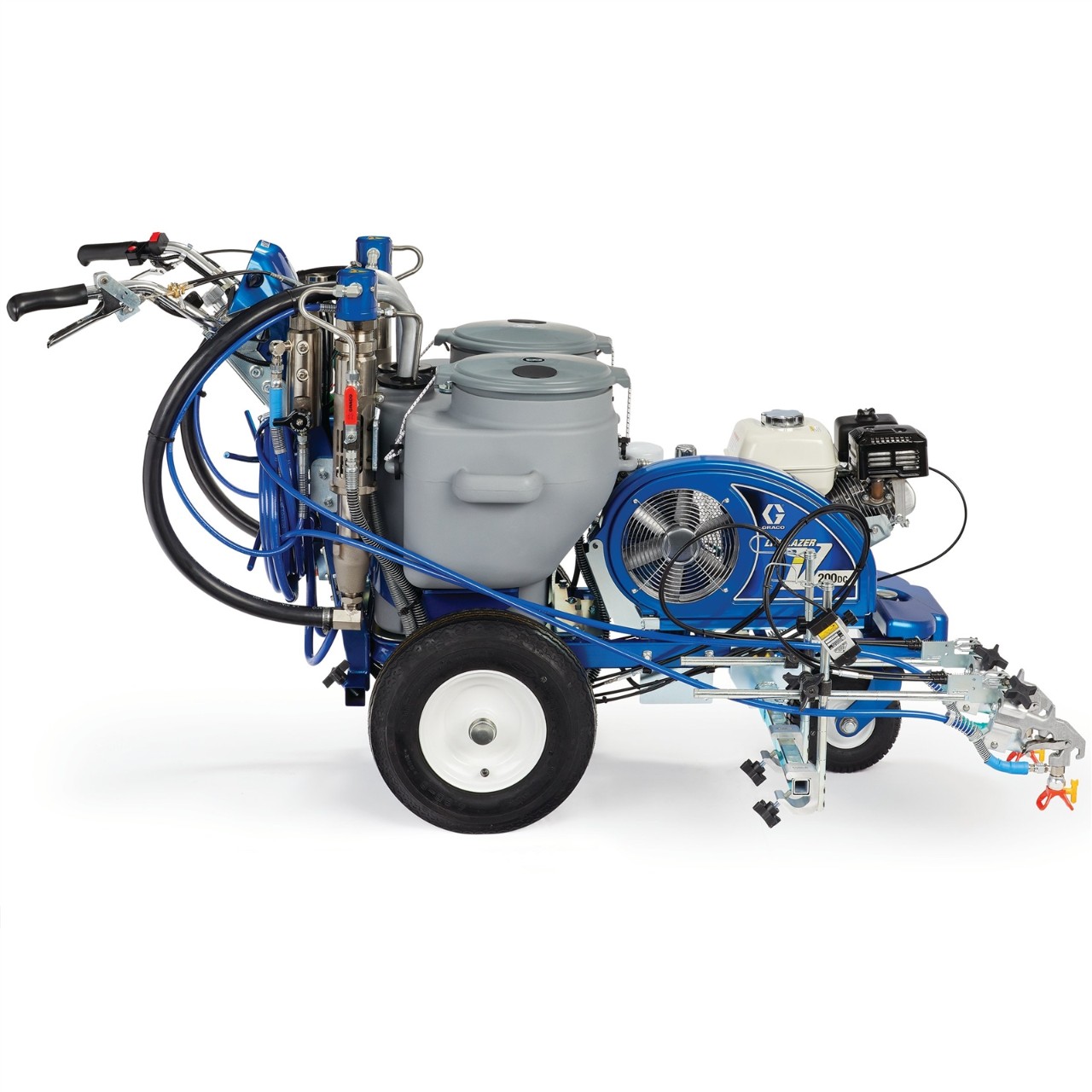

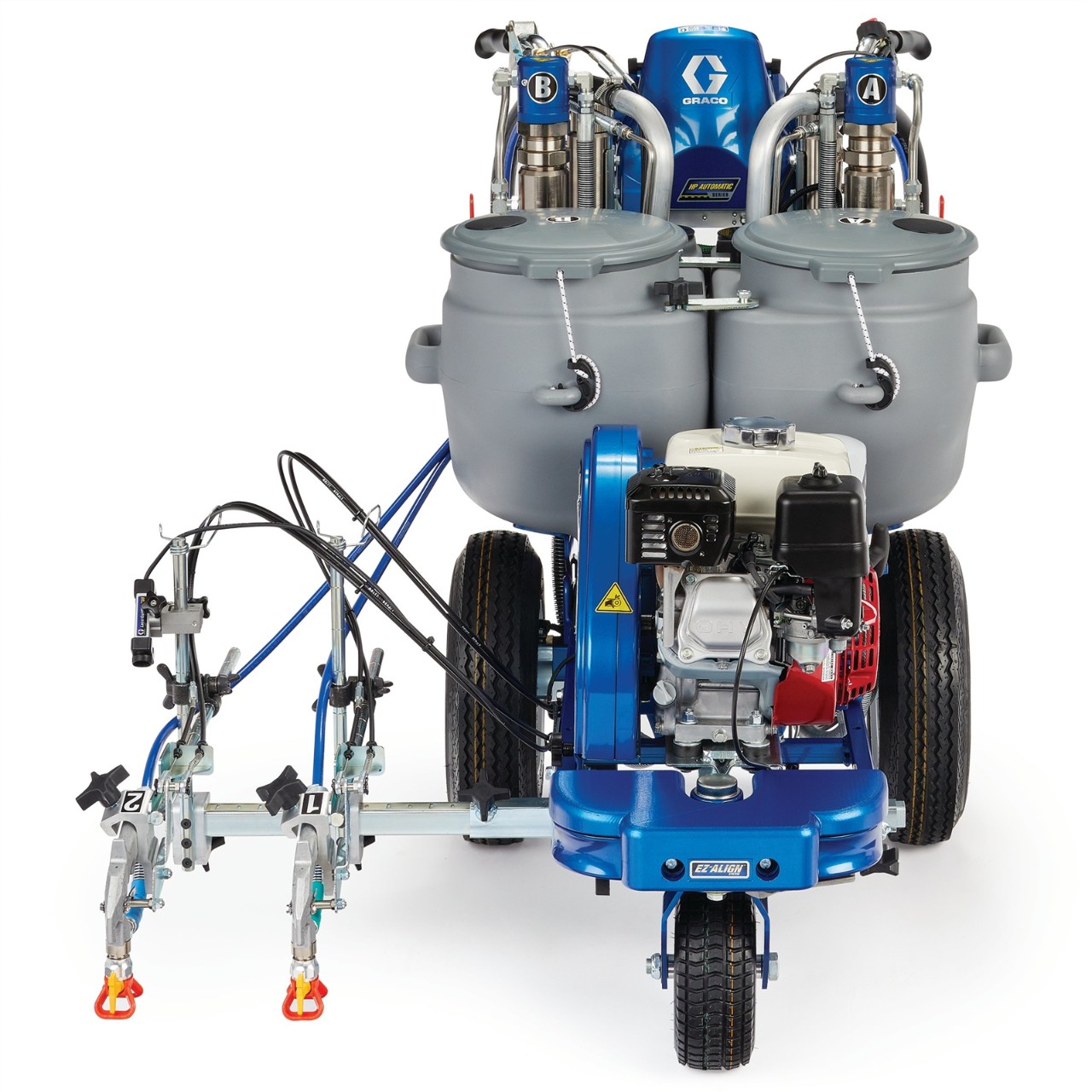

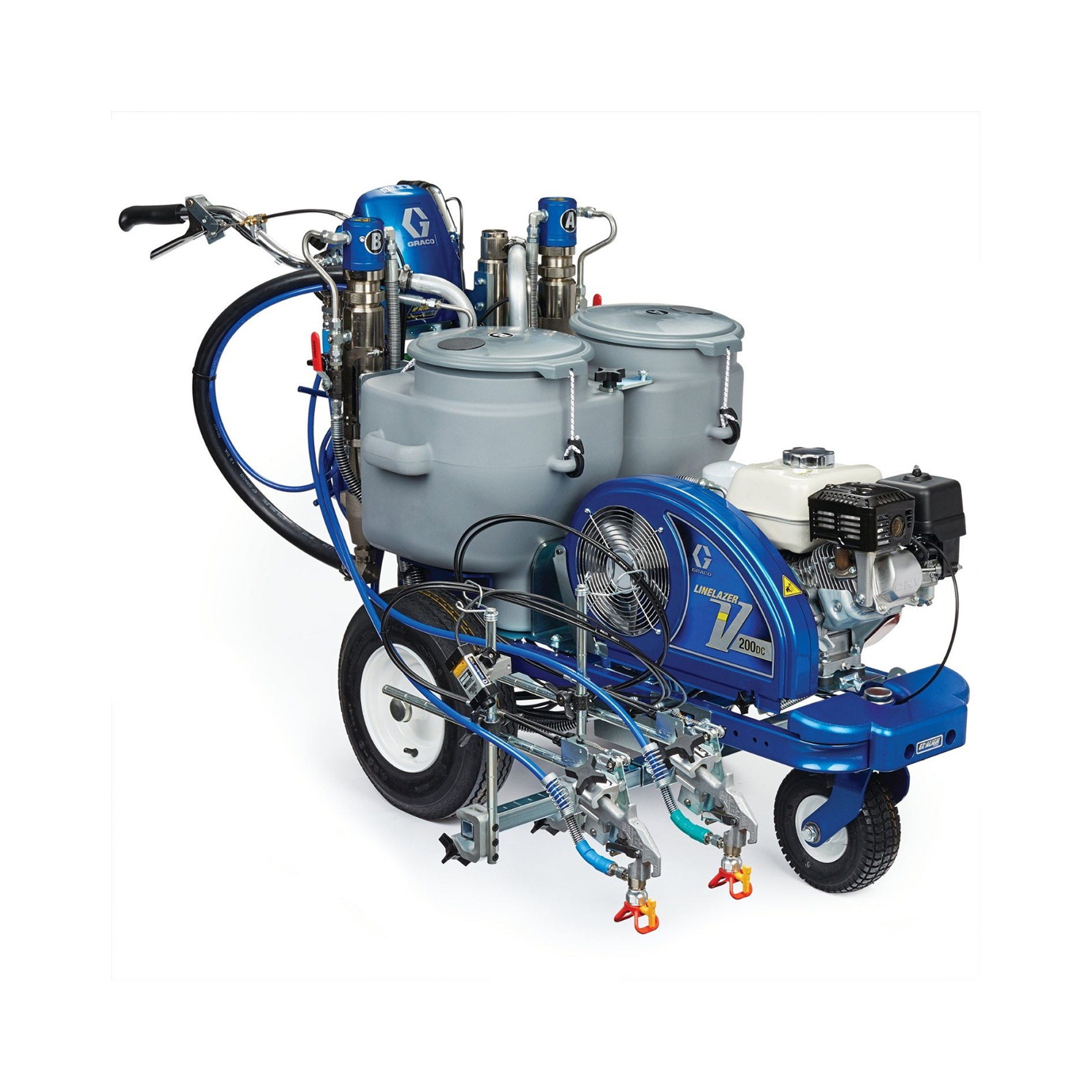

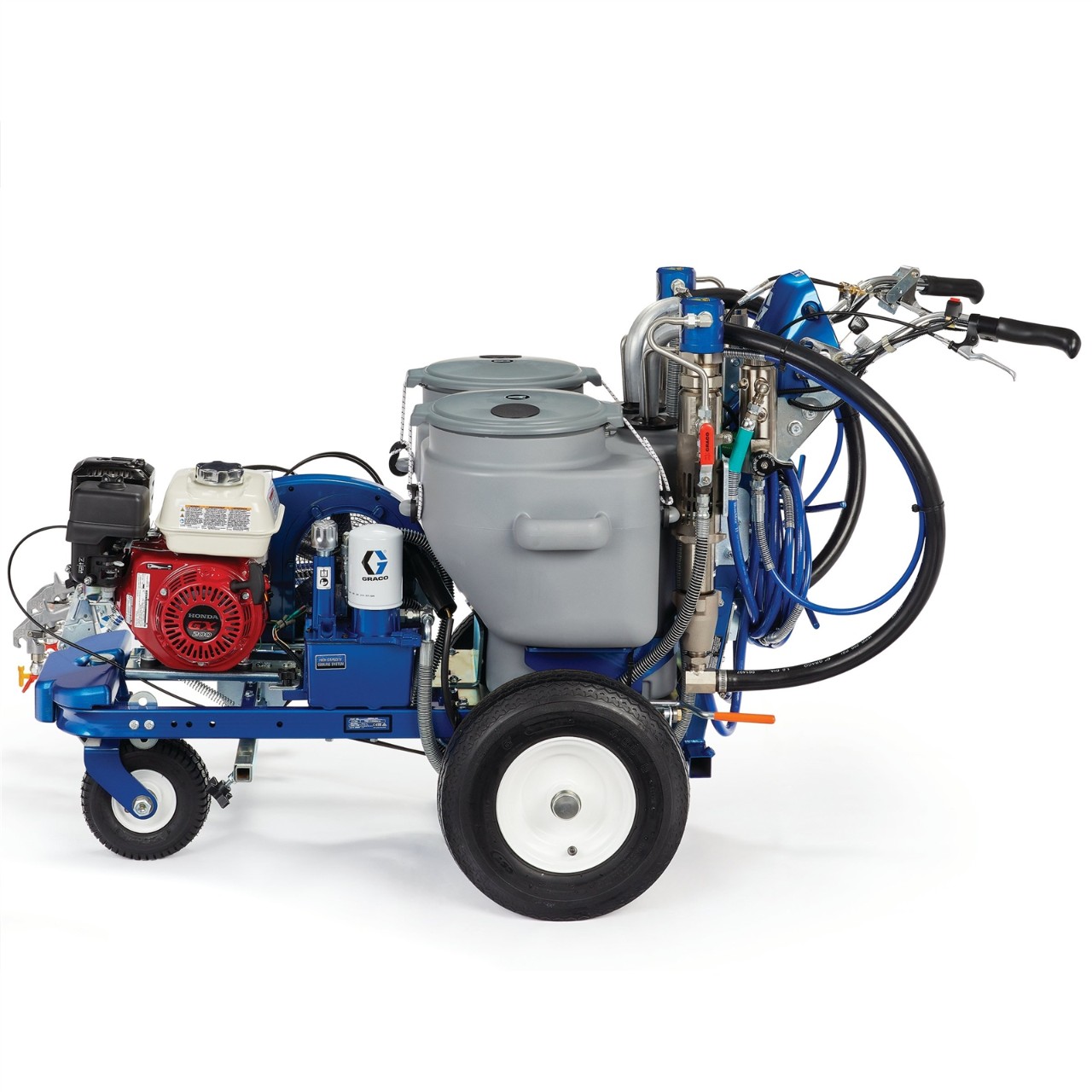

LineLazer 200 DC

The new LineLazer V 200DC is ideal for smaller two-color jobs and simplifies the two-color application process. Marking contractors can improve their efficiency and profitability by eliminating the need for separate “yellow” and “white” machines and spending less time refilling material.

Description

For two colors

  • Two devices in one
  • No need for separate “yellow” and “white” machines



Two large 10-gallon containers

  • Refill less



Two powerful hydraulic motors

  • Uninterrupted performance
  • Standstill-proof construction

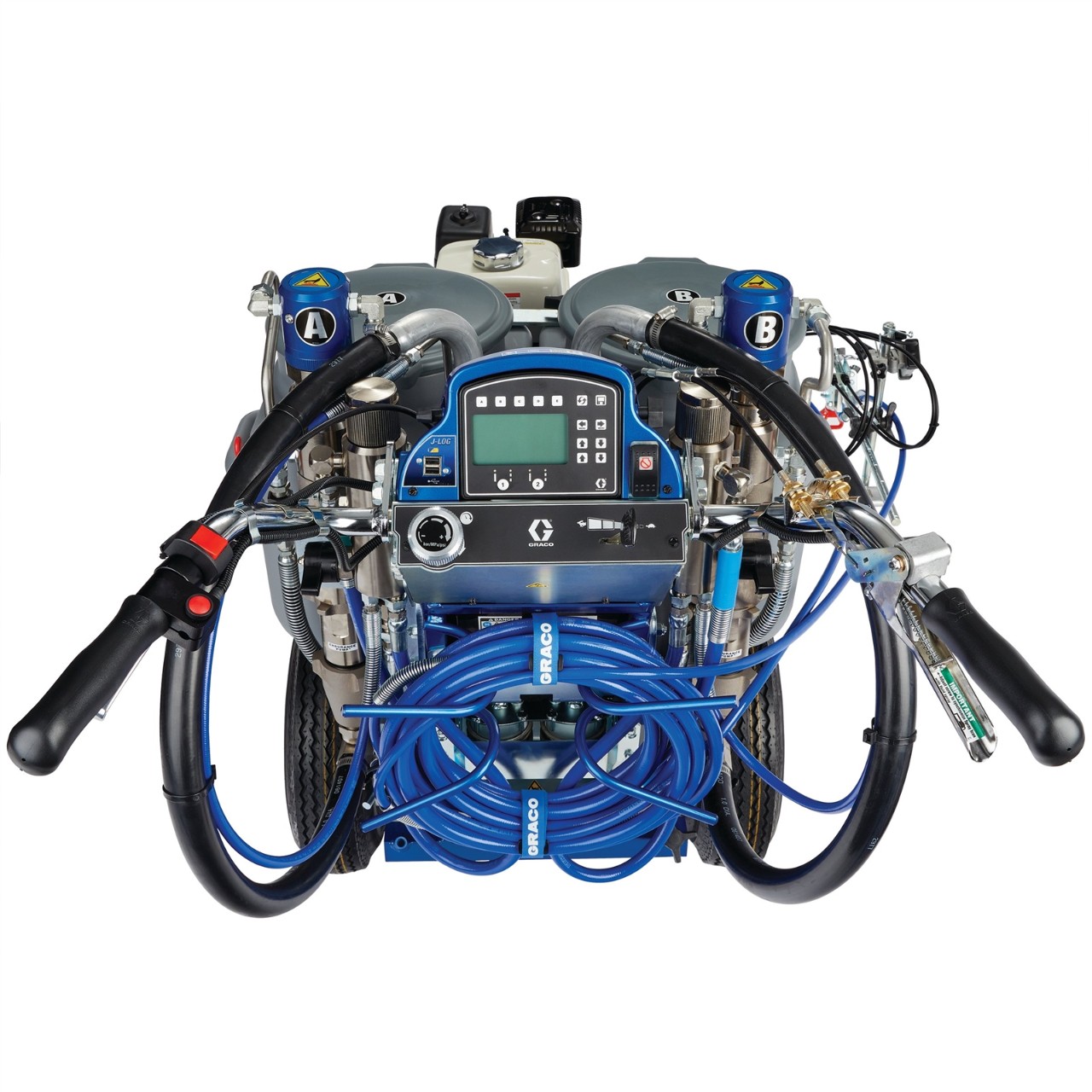

LiveLook display with SmartControl

  • Information on line marking at a glance
  • Track, measure and control every aspect of your job
  • Accessible order verification data from the J-Log system with USB download
  • Even spray pressure for perfect lines



Honda GX Motor

  • Reliable, trouble-free start of the power
  • Favoured by users: outstanding performance and proven reliability
  • The oil warning device switches off the engine to prevent damage if the oil level gets too low

LineLazer V 200DC Standard series airless marking device

Number of containers 2
Number of colors Zweifarben-
Number of pumps 2
Container volume capacity (L) 38
Total width (cm) 87.0
Total height (cm) 113.03
Total length (cm) 174.63
Weight (kg) 173
Fuel tank capacity (L) 3.6
Maximum nozzle size (inch) 0.033
Maximum delivery rate (L/min) 8,14
Motor model GX200
Rated power (kW) 4.85
Gun activation Manual
Number of guns 2
Product series Standard
Includes Flex Plus-Pistole (2), LineLazer RAC 5 319 Spritzdüse (2), LineLazer RAC 5 421 Spritzdüse (2), RAC 5 Düsenschutz (2), TSL
Supply voltage Petrol-powered, hydraulic
Permissible operating pressure (bar) 227

LineLazer V 200DC HP Automatic Series

Number of containers 2
Number of colors Zweifarben-
Number of pumps 2
Total width (cm) 87.0
Total height (cm) 113.03
Total length (cm) 174.63
Weight (kg) 180
Fuel tank capacity (L) 3.6
Maximum nozzle size (inch) 0.033
Maximum delivery rate (L/min) 8,14
Motor model GX200
Rated power (kW) 4.85
Gun activation Manual, Automatic
Number of guns 2
Product series HP Automatic
Includes Flex Plus-Pistole (2)
Supply voltage Flex Plus-Pistole (2), LineLazer RAC 5 319 Spritzdüse (2), LineLazer RAC 5 421 Spritzdüse (2), RAC 5 Düsenschutz (2), TSL,
Permissible operating pressure (bar) 227

Die LineLazer V 200DC HP Reflective Serie

Number of containers 2
Number of colors Zweifarben
Number of pumps 2
Total width (cm) 87.0
Total height (cm) 113.03
Total length (cm) 174.63
Weight (kg) 223
Fuel tank capacity (L) 3.6
Maximum nozzle size (inch) 0.033
Maximum delivery rate (L/min) 8,14
Motor model GX200
Rated power (kW) 4.85
Gun activation Manual, Automatic
Number of guns 2
Product series HP Reflective
Includes Flex Plus-Pistole (2), LineLazer RAC 5 319 Spritzdüse (2), LineLazer RAC 5 421 Spritzdüse (2), RAC 5 Düsenschutz (2), TSL, Perlpistole (2)
Supply voltage Petrol-powered, hydraulic
Permissible operating pressure (bar) 227
