| Machine type |

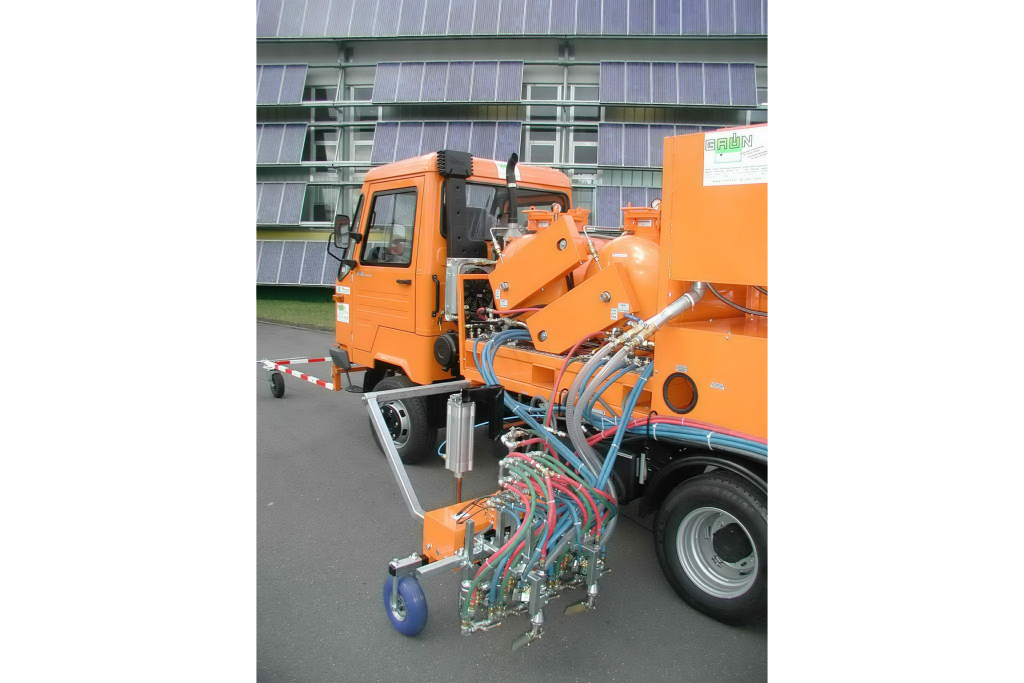

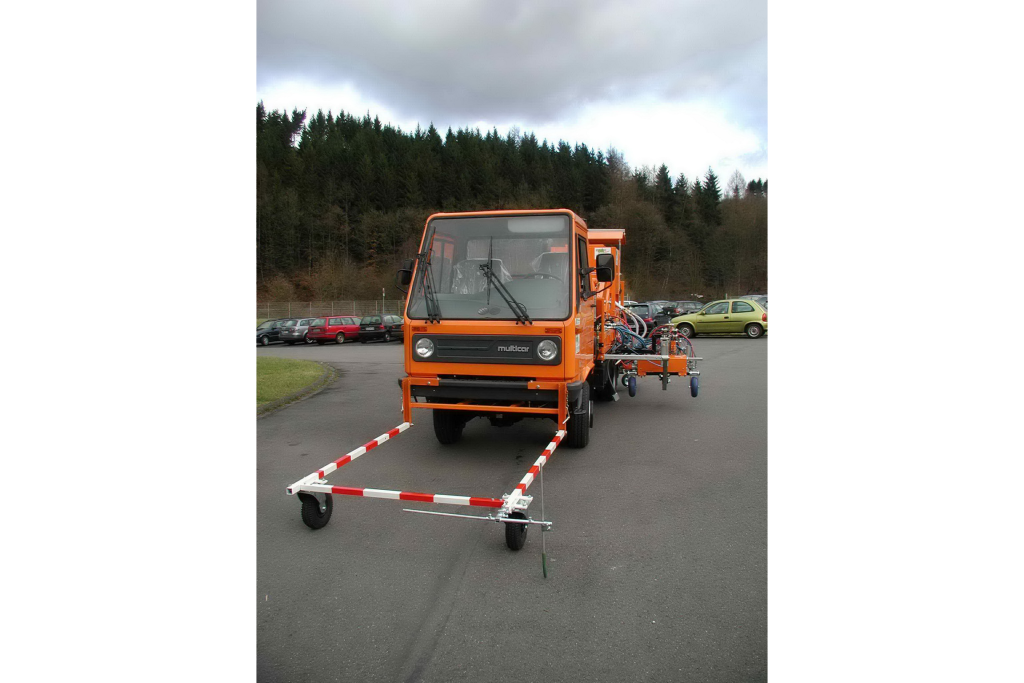

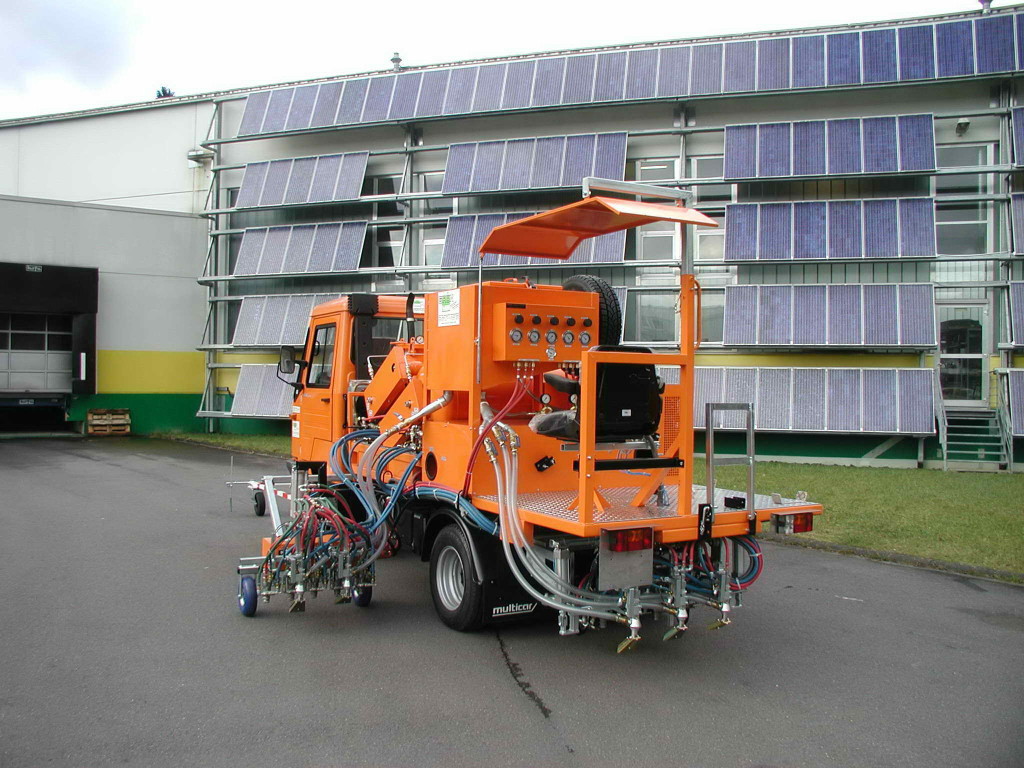

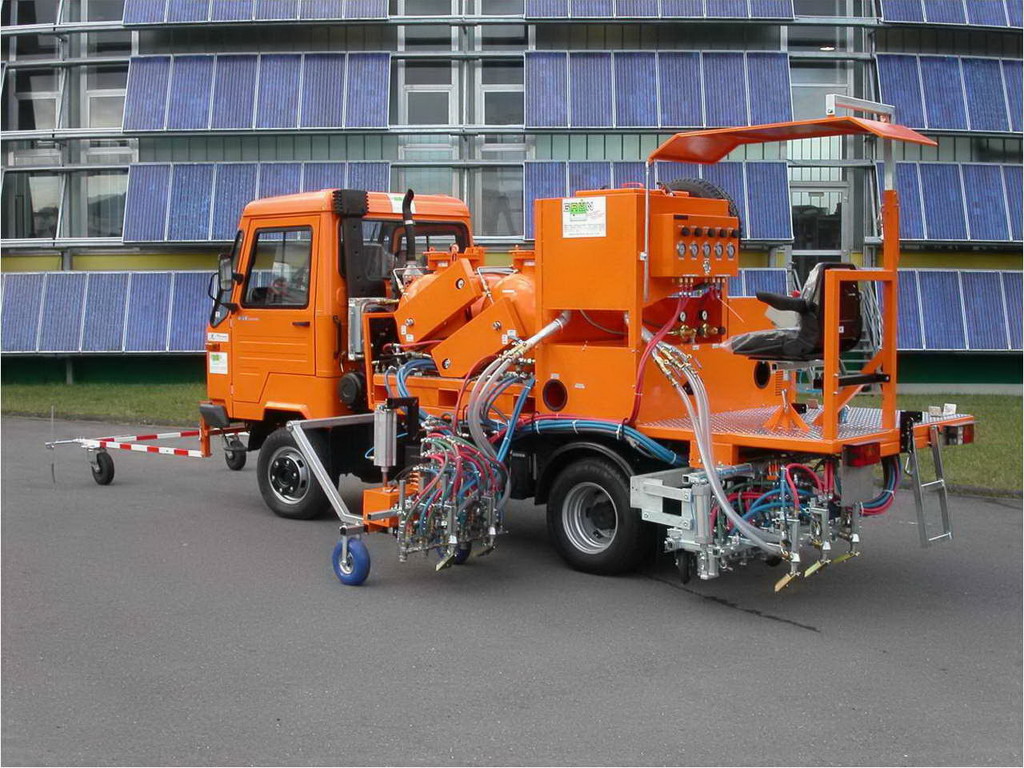

Road marking truck GP 600 |
| Truck type |
Multicar M26 Ecoline 4×2 |
| Wheel base |
2.100 mm |
| Compressor |
air supply approx. 1300 l/min. |
| Paint pressure tank |
1 x 200 ltr. 1 x 400 ltr. with hydraulically driven agitator, including pressured-air connection, paint distributor and rinsing system, on interchangeable pallet |
| Glass bead tank |
approx. 300 kg |
| Operators section |
left hand, above the outriggers, panel with all necessary instruments |

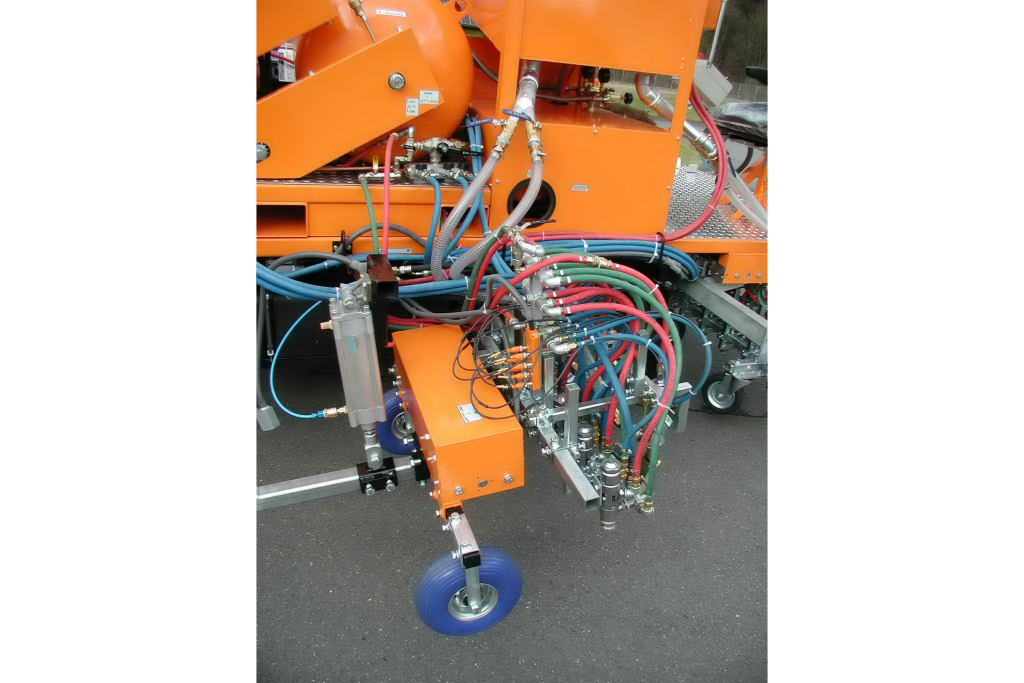

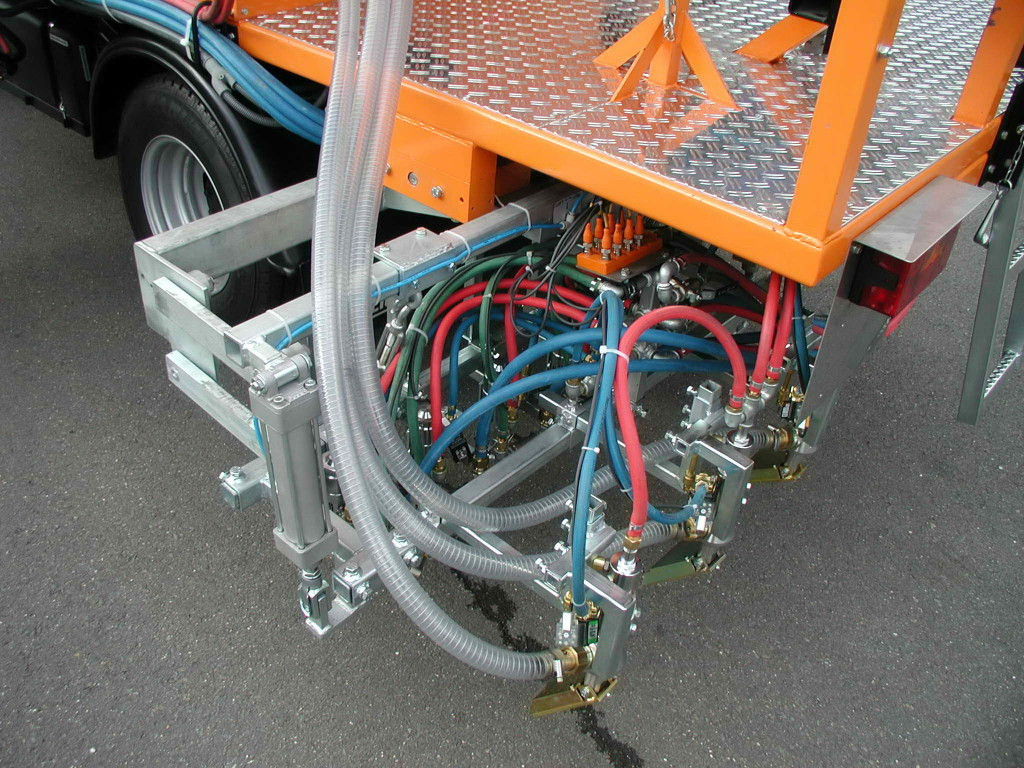

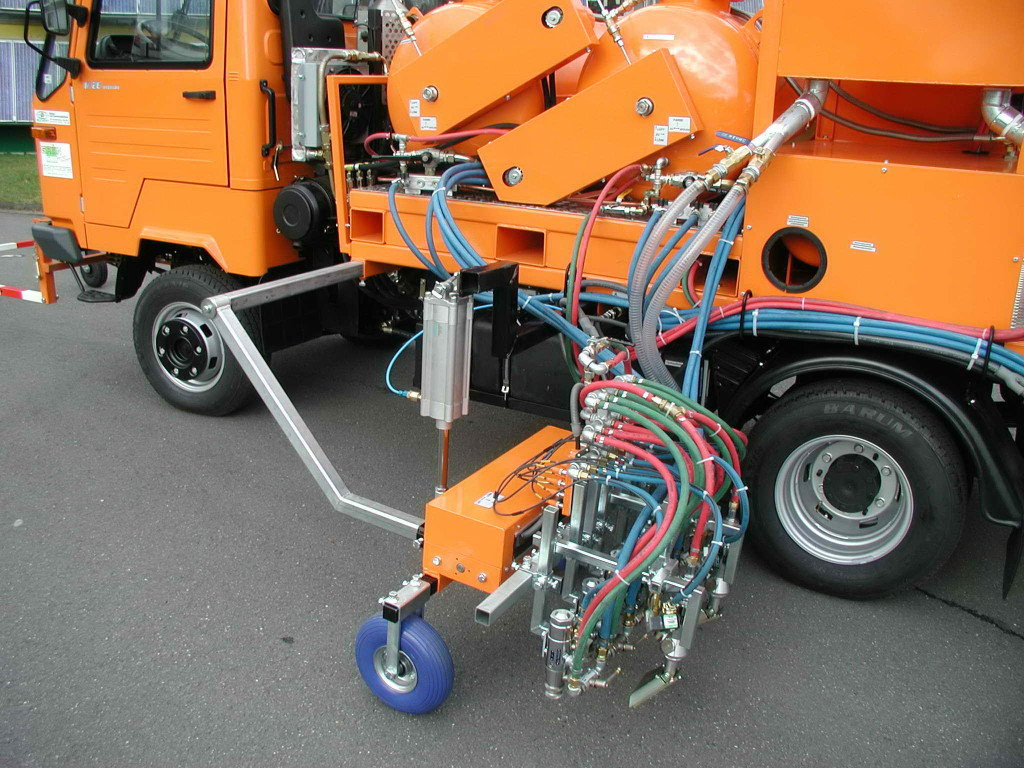

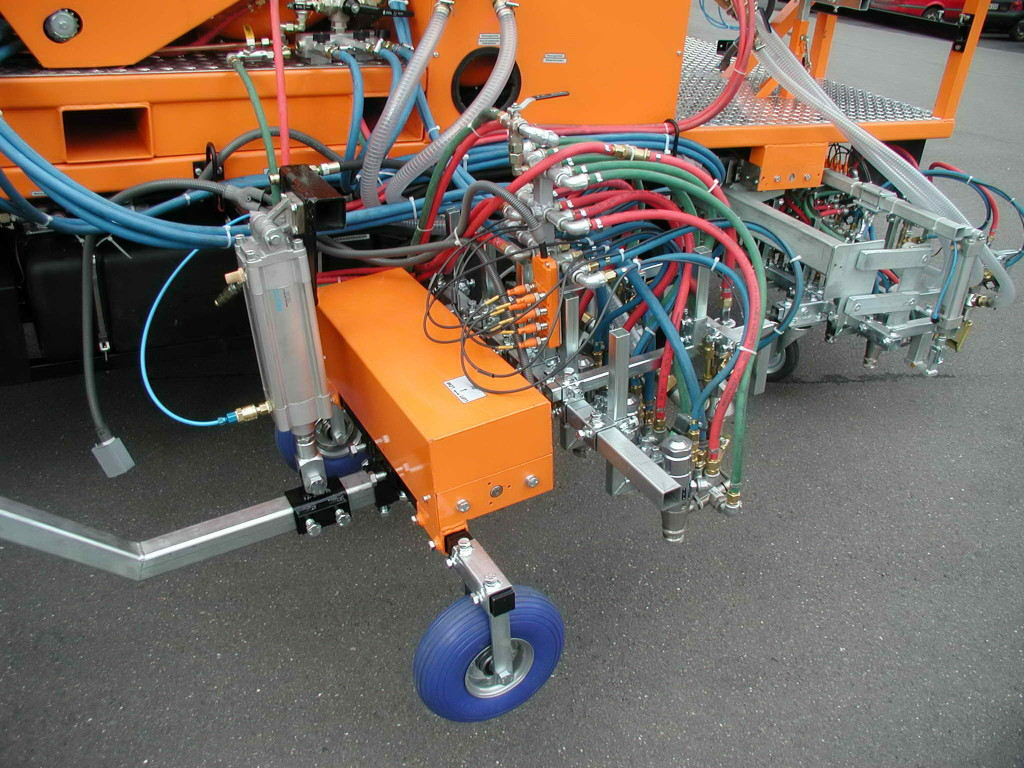

| Outrigger / marker units |
at side and back, with lateral adjustment, hydraulically driven, remote-operated from the driver’s cab |
| Paint spray guns |
on request (can be equipped for wide lines or taxiway marking on airports) |
| Glass bead equipment |
on request |
| Additional equipment |
paint filling pump |
| Empty- / total weight |
approx. 3500 kg / 4300 kg |
| Dimensions Length x width x height |
approx. 5,70 m x 2,40 m x 1,85 m |
Technical modifications and errors excepted,
illustrations similar resp. partly including special accessories.
|
State of art: 01.11.2014_e
|
