| Machine type |

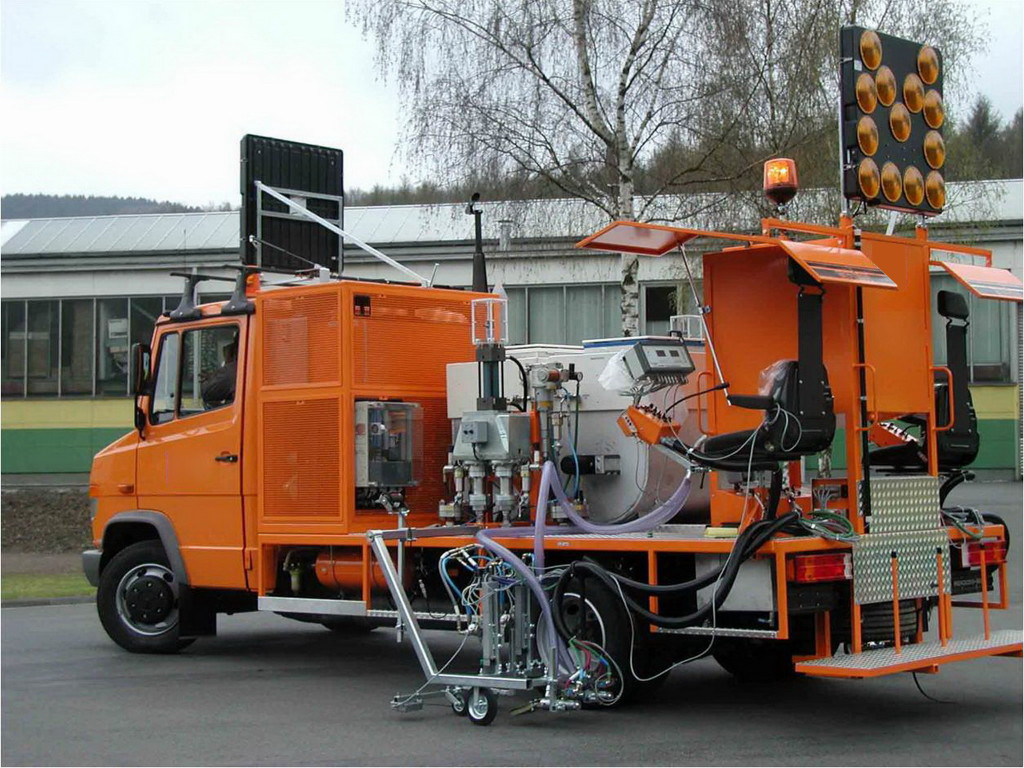

Road marking truck GKSP 1000 |
| Truck type |
Mercedes Benz Vario 814 D |
| Hydraulic powerstation |
VW-Dieselengine, 50 HP (37 kW) at 3000/min. |
| Compressor |
air-cooled rotary compressor, direct hydraulic drive, air supply 1150 l/min. at 7 bar |
| Glass bead tank |
650 ltr. |
|
|
| Equipment |
for processing 2K cold sprayplastic, airless paint, and water-based paint |
| Paint container |
2x 500 ltr, pressureless, stainless steel |
| Rinsing system |
solvent tank, stainless steel, pneumatically driven rinsing pump |
| Twin paint pump system |
2 pieces airless twin-pumps, hydraulically driven, nominal capacity each 18 l/min. |
| Spraying head |
3 pieces 2-component spraying head |
|
|
| Operators section |
right and left hand side |
| Outrigger / marker units |
right and left, near outrigger, for operation of the machine, all necessary instruments are clearly arranged |
| Empty- / total weight |
approx. 6120 kg / 8000 kg |
| Dimensions Length x width x height |
approx. 7,60 m x 2,25 m x 2,90 m |
Technical modifications and errors excepted,
illustrations similar resp. partly including special accessories.
|
State of art: 01.11.2014_e
|
